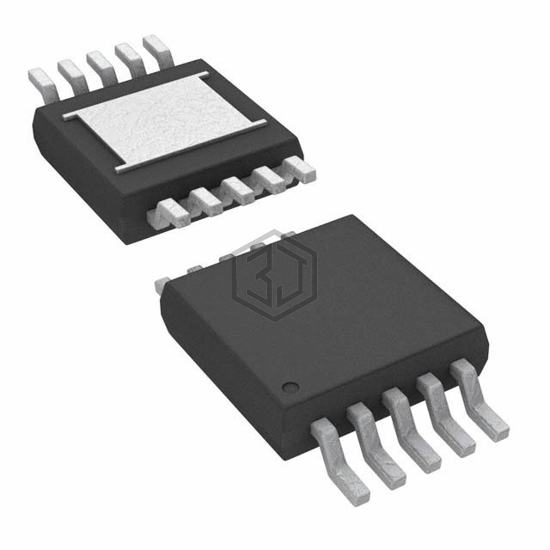

IC REG CTRLR FLYBACK 10MSOP
LTC3805HMSE#TRPBF is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc.. IC REG CTRLR FLYBACK 10MSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) 3.95V ~ 9.5V, package / case 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad.
In Stock: 4,798
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive, Isolation Capable |
| Topology | Flyback |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 3.95V ~ 9.5V |
| Frequency - Switching | 70kHz ~ 700kHz |
| Duty Cycle (Max) | 80% |
| Synchronous Rectifier | No |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Enable, Soft Start |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 10-MSOP-EP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LTC3805HMSE#PBF | Analog Devices Inc. | IC REG CTRLR FLYBACK 10MSOP | 100% | View |
| LTC3805MPMSE#TRPBF | Analog Devices Inc. | IC REG CTRLR FLYBACK 10MSOP | 100% | View |
| LTC3805MPMSE#PBF | Analog Devices Inc. | IC REG CTRLR FLYBACK 10MSOP | 100% | View |
| LT3752HFE#WTRPBF | Analog Devices Inc. | ACTIVE CLAMP SYNC FOR CNTRS W/ I | 80% | View |
| LT3752HFE-1#WPBF | Analog Devices Inc. | ACTIVE CLAMP SYNC FOR CNTRS W/ I | 80% | View |
| LT3752MPFE#PBF | Analog Devices Inc. | IC REG CTRLR FWRD CONV 38TSSOP | 80% | View |
Submit your RFQ for LTC3805HMSE#TRPBF and get a quote within 24 hours.
