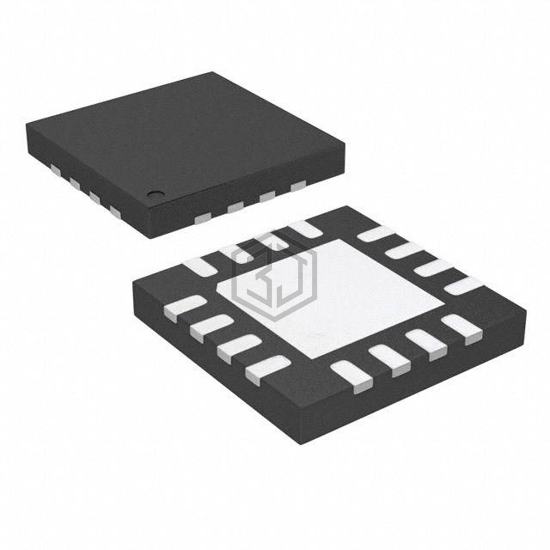

IC REG CTRLR MULT TOPOLOGY 16QFN
LTC3786EUD#PBF is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc.. IC REG CTRLR MULT TOPOLOGY 16QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 4.5V ~ 38V, package / case 16-WFQFN Exposed Pad.
In Stock: 8,574
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Boost, Flyback, SEPIC |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 38V |
| Frequency - Switching | 105kHz ~ 760kHz |
| Duty Cycle (Max) | 96% |
| Synchronous Rectifier | Yes |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, Frequency Control, Power Good, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 16-WFQFN Exposed Pad |
| Supplier Device Package | 16-QFN (3x3) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LTC3786EUD#TRPBF | Analog Devices Inc. | IC REG CTRLR MULT TOPOLOGY 16QFN | 100% | View |
| LTC3786HMSE#PBF | Analog Devices Inc. | PWR MGMT SWITCHING REGULATOR | 100% | View |
| LTC3769MPUF#PBF | Analog Devices Inc. | IC REG CTRLR BOOST/SEPIC 24QFN | 100% | View |
| LTC3769EFE#TRPBF | Analog Devices Inc. | IC REG CTRLR BOOST/SEPIC 20TSSOP | 100% | View |
| LTC3769MPUF#TRPBF | Analog Devices Inc. | IC REG CTRLR BOOST/SEPIC 24QFN | 100% | View |
| LTC3786IMSE#TRPBF | Analog Devices Inc. | IC REG CTRLR MULT TOP 16MSOP | 100% | View |
Submit your RFQ for LTC3786EUD#PBF and get a quote within 24 hours.
