IC POWER MANAGEMENT

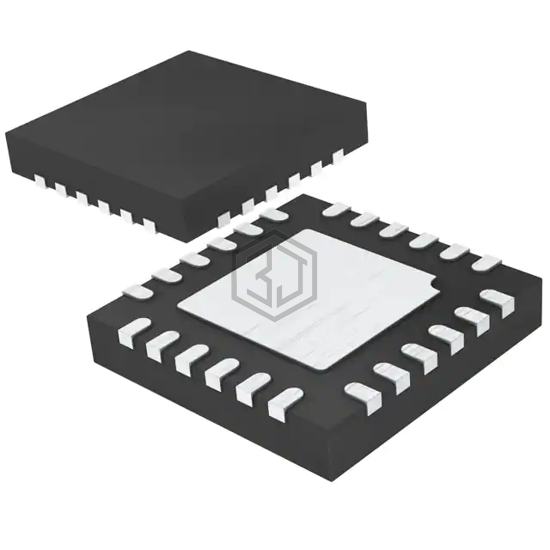

LTC3785EUF-1 is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc.. IC POWER MANAGEMENT. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 2.7V ~ 10V, package / case 24-WFQFN Exposed Pad.
In Stock: 7,633
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | Transistor Driver |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Buck-Boost |
| Number of Outputs | 2 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 10V |
| Frequency - Switching | 100kHz ~ 1MHz |
| Duty Cycle (Max) | 99% |
| Synchronous Rectifier | Yes |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, Soft Start |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 24-WFQFN Exposed Pad |
| Supplier Device Package | 24-QFN (4x4) |
LTC3785EUF-1 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NCP12711ADNR2G | onsemi | 4-45 V INPUT CURRENT MODE ISOLAT | 88% | View |
| BD9036EFV-CE2 | Rohm Semiconductor | AUTOMATICALLY CONTROLLED BUCK-BO | 88% | View |
| LTC7818IUJ#WTRPBF | Analog Devices Inc. | BUCK/BUCK/BOOST SYNC CTL, 40V, 3 | 86% | View |
| NCV12711ADNR2G | onsemi | AUTOMOTIVE QUALIFIED 4-45 VIN DC | 85% | View |
| LTC7878AUK#PBF | Analog Devices Inc. | 80V PEAK CURRENT MODE BUCK-BOOST | 85% | View |
| LT8292AFE#TRPBF | Analog Devices Inc. | 60V L-IQ SYNC. BB CONT. W/ ISHAR | 84% | View |
Submit your RFQ for LTC3785EUF-1 and get a quote within 24 hours.
