IC POWER MANAGEMENT

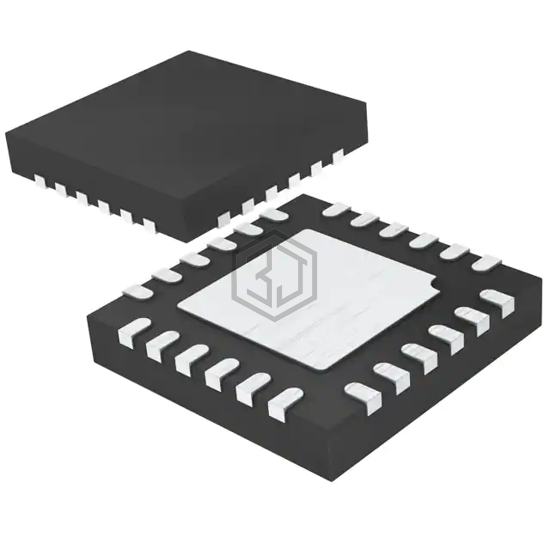

LTC3785EUF is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc.. IC POWER MANAGEMENT. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 2.7V ~ 10V, package / case 24-WFQFN Exposed Pad.
In Stock: 6,349
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | Transistor Driver |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Buck-Boost |
| Number of Outputs | 2 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 10V |
| Frequency - Switching | 100kHz ~ 1MHz |
| Duty Cycle (Max) | 99% |
| Synchronous Rectifier | Yes |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, Soft Start |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 24-WFQFN Exposed Pad |
| Supplier Device Package | 24-QFN (4x4) |
LTC3785EUF is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LTC3785IUF | Analog Devices Inc. | IC POWER MANAGEMENT | 100% | View |
| LT8705AEFE | Analog Devices Inc. | IC REG BUCK | 92% | View |
| LT8705IFE | Analog Devices Inc. | IC REG BUCK | 92% | View |
| LT8705AMPFE | Analog Devices Inc. | IC REG BUCK | 92% | View |
| LM34936QPWPRQ1 | Texas Instruments | IC POWER REGULATOR | 87% | View |
| LT8708HUHG-1#TRPBF | Analog Devices Inc. | 80V SYNCHRONOUS 4-SWITCH BUCK-BO | 84% | View |
Submit your RFQ for LTC3785EUF and get a quote within 24 hours.
