IC POWER MANAGEMENT

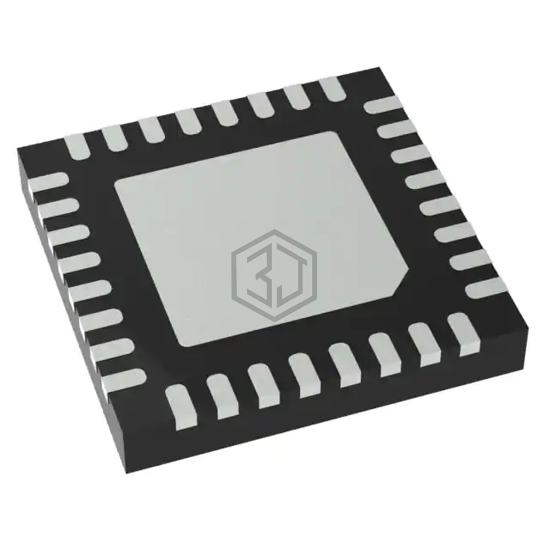

LTC3780MPUH is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc.. IC POWER MANAGEMENT. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 4V ~ 30V, package / case 32-WFQFN Exposed Pad.
In Stock: 4,282
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | Transistor Driver |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Buck-Boost |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 4V ~ 30V |
| Frequency - Switching | 200kHz ~ 400kHz |
| Duty Cycle (Max) | 99% |
| Synchronous Rectifier | Yes |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, Power Good, Soft Start |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 32-WFQFN Exposed Pad |
| Supplier Device Package | 32-QFN (5x5) |
LTC3780MPUH is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LTC3780MPG#TRPBF | Analog Devices Inc. | IC REG CTRLR BUCK-BOOST 24SSOP | 100% | View |
| LTC3780MPG#PBF | Analog Devices Inc. | IC REG CTRLR BUCK-BOOST 24SSOP | 100% | View |
| LT3790MPFE#TRPBF | Analog Devices Inc. | IC REG CTRLR BUCK-BOOST 38TSSOP | 83% | View |
| LT3791MPFE-1#PBF | Analog Devices Inc. | IC REG CTRLR BUCK-BOOST 38TSSOP | 83% | View |
| LT3790MPFE#PBF | Analog Devices Inc. | IC REG CTRLR BUCK-BOOST 38TSSOP | 83% | View |
| LT3791MPFE-1#TRPBF | Analog Devices Inc. | IC REG CTRLR BUCK-BOOST 38TSSOP | 83% | View |
Submit your RFQ for LTC3780MPUH and get a quote within 24 hours.
