IC POWER MANAGEMENT

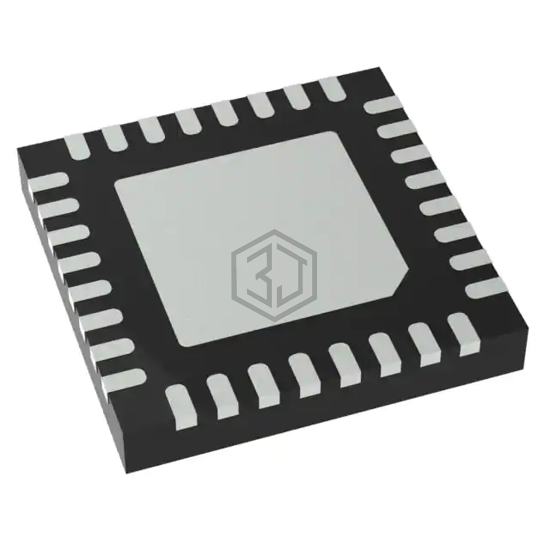

LTC3780IUH is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc.. IC POWER MANAGEMENT. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 4V ~ 30V, package / case 32-WFQFN Exposed Pad.
In Stock: 2,991
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | Transistor Driver |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Buck-Boost |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 4V ~ 30V |
| Frequency - Switching | 200kHz ~ 400kHz |
| Duty Cycle (Max) | 99% |
| Synchronous Rectifier | Yes |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, Power Good, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 32-WFQFN Exposed Pad |
| Supplier Device Package | 32-QFN (5x5) |
LTC3780IUH is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LM5020MMX-1 | Texas Instruments | IC REG CTRLR FLYBACK 10MSOP | 92% | View |
| LM5020SDX-1 | Texas Instruments | IC REG CTRLR FLYBACK 10WSON | 92% | View |
| LM5020SD-1 | Texas Instruments | IC REG CTRLR FLYBACK 10WSON | 92% | View |
| LM5020MMX-2 | Texas Instruments | IC REG CTRLR FLYBACK 10MSOP | 92% | View |
| UCC2808AQDR-2G4Q1 | Texas Instruments | IC REG CTRLR PUSH-PULL 8SOIC | 91% | View |
| UCC28220QDRQ1 | Texas Instruments | IC REG CTRLR MULT TOP 16SOIC | 84% | View |
Submit your RFQ for LTC3780IUH and get a quote within 24 hours.
