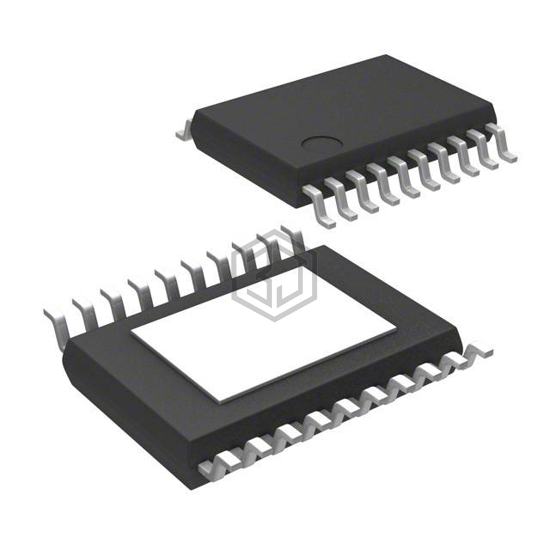

IC REG CTRLR BOOST/SEPIC 20TSSOP
LTC3769EFE#PBF is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc.. IC REG CTRLR BOOST/SEPIC 20TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 4.5V ~ 60V, package / case 20-TSSOP (0.173", 4.40mm Width) Exposed Pad.
In Stock: 7,096
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Boost, SEPIC |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 60V |
| Frequency - Switching | 105kHz ~ 760kHz |
| Duty Cycle (Max) | 96% |
| Synchronous Rectifier | Yes |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, Frequency Control, Power Good, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 20-TSSOP-EP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LTC3786HUD#PBF | Analog Devices Inc. | PWR MGMT SWITCHING REGULATOR | 100% | View |
| LTC3786HUD#TRPBF | Analog Devices Inc. | PWR MGMT SWITCHING REGULATOR | 100% | View |
| LTC3769IUF#PBF | Analog Devices Inc. | IC REG CTRLR BOOST/SEPIC 24QFN | 100% | View |
| LTC3769EUF#PBF | Analog Devices Inc. | IC REG CTRLR BOOST/SEPIC 24QFN | 100% | View |
| LTC3786IMSE#PBF | Analog Devices Inc. | IC REG CTRLR MULT TOP 16MSOP | 100% | View |
| LTC3769HFE#PBF | Analog Devices Inc. | IC REG CTRLR BOOST/SEPIC 20TSSOP | 100% | View |
Submit your RFQ for LTC3769EFE#PBF and get a quote within 24 hours.
