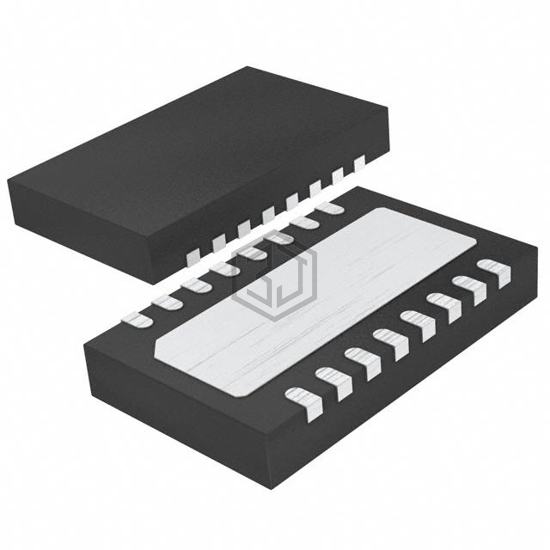

IC REG BCK BST ADJ 1A 16DFN
LTC3114MPDHC-1#PBF is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Analog Devices Inc.. IC REG BCK BST ADJ 1A 16DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 16-WFDFN Exposed Pad, current - output 1A.
In Stock: 5,108
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Buck-Boost |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.2V |
| Voltage - Input (Max) | 40V |
| Voltage - Output (Min/Fixed) | 2.7V |
| Voltage - Output (Max) | 40V |
| Current - Output | 1A |
| Frequency - Switching | 1.2MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 16-WFDFN Exposed Pad |
| Supplier Device Package | 16-DFN (5x3) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LTC3114MPDHC-1#TRPBF | Analog Devices Inc. | IC REG BCK BST ADJ 1A 16DFN | 100% | View |
| LTC3114MPFE-1#TRPBF | Analog Devices Inc. | IC REG BCK BST ADJ 1A 16TSSOP | 100% | View |
| LTC3114MPFE-1#PBF | Analog Devices Inc. | IC REG BCK BST ADJ 1A 16TSSOP | 100% | View |
| LTC3118MPUFD#TRPBF | Analog Devices Inc. | IC REG BCK BST ADJ 2A 24QFN | 55% | View |
| LTC3118MPFE#PBF | Analog Devices Inc. | IC REG BCK BST ADJ 2A 28TSSOP | 55% | View |
| LTC3118MPUFD#PBF | Analog Devices Inc. | IC REG BCK BST ADJ 2A 24QFN | 55% | View |
Submit your RFQ for LTC3114MPDHC-1#PBF and get a quote within 24 hours.
