8 CH +/-15V SOFTSPAN DACS

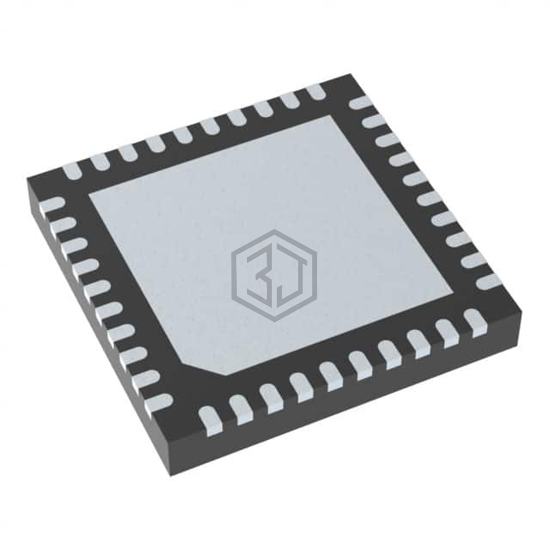

LTC2686IUJ-16#PBF is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. 8 CH +/-15V SOFTSPAN DACS. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 4.75V ~ 5.25V, package / case 40-WFQFN Exposed Pad.
In Stock: 8,028
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Bits | 16 |
| Number of D/A Converters | 8 |
| Settling Time | 18µs (Typ) |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 4.75V ~ 5.25V |
| Voltage - Supply, Digital | 4.75V ~ 5.25V |
| INL/DNL (LSB) | ±3LSB (Max), ±1 (Max) |
| Architecture | - |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 40-WFQFN Exposed Pad |
| Supplier Device Package | 40-QFN (6x6) |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LTC2686HUJ-16#PBF | Analog Devices Inc. | 8 CH +/-15V SOFTSPAN DACS | 100% | View |
| LTC2686HUJ-16#TRPBF | Analog Devices Inc. | 8 CH +/-15V SOFTSPAN DACS | 100% | View |
| LTC2686IUJ-16#TRPBF | Analog Devices Inc. | 8 CH +/-15V SOFTSPAN DACS | 100% | View |
| LTC1657IGN#PBF | Analog Devices Inc. | IC DAC 16BIT V-OUT 28SSOP | 81% | View |
| MAX5132AEEE+ | Analog Devices Inc./Maxim Integrated | IC DAC 13BIT V-OUT 16QSOP | 79% | View |
| MCP47CMB22-E/UN | Microchip Technology | IC DAC 12BIT V-OUT 10MSOP | 63% | View |
Submit your RFQ for LTC2686IUJ-16#PBF and get a quote within 24 hours.
