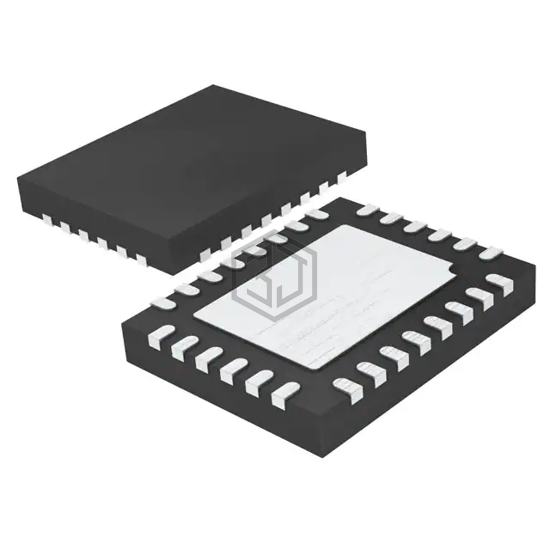

IC ADC 12BIT SAR 28QFN
LTC2321CUFD-12 is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Analog Devices Inc.. IC ADC 12BIT SAR 28QFN. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply, digital 3.13V ~ 3.47V, 4.75V ~ 5.25V, package / case 28-WFQFN Exposed Pad.
In Stock: 5,132
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 2M |
| Number of Inputs | 2 |
| Input Type | Differential, Pseudo-Differential |
| Data Interface | LVDS - Serial, Serial |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 2 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 3.13V ~ 3.47V, 4.75V ~ 5.25V |
| Voltage - Supply, Digital | 3.13V ~ 3.47V, 4.75V ~ 5.25V |
| Features | Simultaneous Sampling |
| Operating Temperature | 0°C ~ 70°C |
| Package / Case | 28-WFQFN Exposed Pad |
| Supplier Device Package | 28-QFN (4x5) |
| Mounting Type | Surface Mount |
LTC2321CUFD-12 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADS6245IRGZT | Texas Instruments | IC ADC 14BIT PIPELINED 48VQFN | 97% | View |
| ADC14DS080CISQ/NOPB | National Semiconductor | IC ADC 14BIT PIPELINED 60WQFN | 94% | View |
| MAX1181ECM+D | Analog Devices Inc./Maxim Integrated | IC ADC 10BIT PIPELINED 48TQFP | 94% | View |
| ADS62P43IRGCT | Texas Instruments | IC ADC 14BIT PIPELINED 64VQFN | 90% | View |
| ADC1113D125HN-C1 | Renesas Electronics America Inc | IC ADC 11BIT PIPELINED 56VFQFPN | 90% | View |
| LTC2305IMS#PBF | Analog Devices Inc. | IC ADC 12BIT SAR 12MSOP | 80% | View |
Submit your RFQ for LTC2321CUFD-12 and get a quote within 24 hours.
