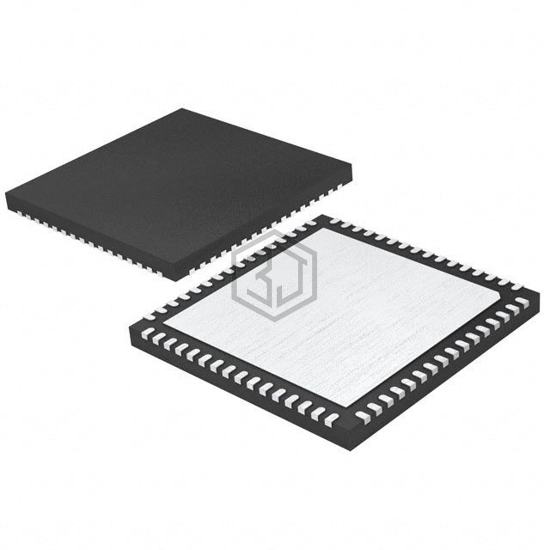

IC ADC 14BIT PIPELINED 64QFN
LTC2284CUP is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Analog Devices Inc.. IC ADC 14BIT PIPELINED 64QFN. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply, digital 2.85V ~ 3.4V, package / case 64-WFQFN Exposed Pad.
In Stock: 6,496
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 105M |
| Number of Inputs | 2 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 2 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.85V ~ 3.4V |
| Voltage - Supply, Digital | 2.85V ~ 3.4V |
| Features | Simultaneous Sampling |
| Operating Temperature | 0°C ~ 70°C |
| Package / Case | 64-WFQFN Exposed Pad |
| Supplier Device Package | 64-QFN (9x9) |
| Mounting Type | Surface Mount |
LTC2284CUP is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LTC2293CUP#TRPBF | Analog Devices Inc. | IC ADC 12BIT PIPELINED 64QFN | 97% | View |
| LTC1407HMSE#TRPBF | Analog Devices Inc. | IC ADC 12BIT PIPELINED 10MSOP | 88% | View |
| ADC3241IRGZT | Texas Instruments | IC ADC 14BIT PIPELINED 48VQFN | 87% | View |
| LTC2268IUJ-14#PBF | Analog Devices Inc. | IC ADC 14BIT PIPELINED 40QFN | 87% | View |
| LTC2194CUKG#PBF | Analog Devices Inc. | IC ADC 16BIT PIPELINED 52QFN | 86% | View |
| ADS9224RIRHBR | Texas Instruments | IC ADC 16BIT SAR 32VQFN | 86% | View |
Submit your RFQ for LTC2284CUP and get a quote within 24 hours.
