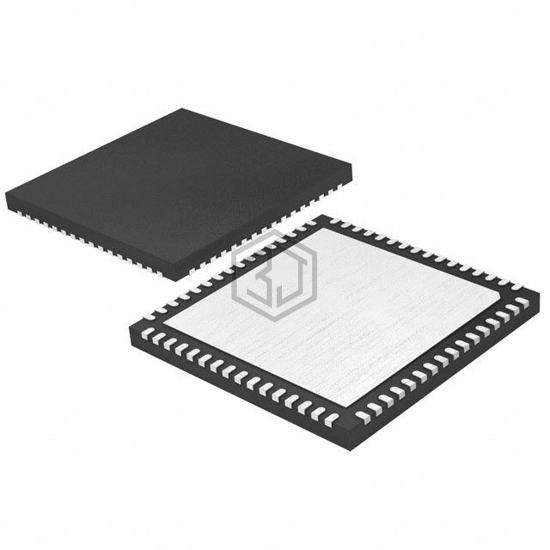

IC ADC 12BIT PIPELINED 64QFN
LTC2156CUP-12 is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Analog Devices Inc.. IC ADC 12BIT PIPELINED 64QFN. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply, digital 1.7V ~ 1.9V, package / case 64-WFQFN Exposed Pad.
In Stock: 3,194
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 210M |
| Number of Inputs | 2 |
| Input Type | Differential |
| Data Interface | LVDS - Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 2 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| Features | Simultaneous Sampling |
| Operating Temperature | 0°C ~ 70°C |
| Package / Case | 64-WFQFN Exposed Pad |
| Supplier Device Package | 64-QFN (9x9) |
| Mounting Type | Surface Mount |
LTC2156CUP-12 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LTC2143CUP-12#TRPBF | Analog Devices Inc. | IC ADC 12BIT PIPELINED 64QFN | 100% | View |
| ADC3244IRGZT | Texas Instruments | IC ADC 14BIT PIPELINED 48VQFN | 98% | View |
| ADC16DV160CILQE/NOPB | Texas Instruments | IC ADC 16BIT PIPELINED 68VQFN | 91% | View |
| ADC16DV160CILQX/NOPB | Texas Instruments | IC ADC 16BIT PIPELINED 68VQFN | 91% | View |
| AD7381BCPZ | Analog Devices Inc. | IC ADC 14BIT SAR 16LFCSP | 91% | View |
| ADC10DV200CISQ/NOPB | Texas Instruments | IC ADC 10BIT PIPELINED 60WQFN | 84% | View |
Submit your RFQ for LTC2156CUP-12 and get a quote within 24 hours.
