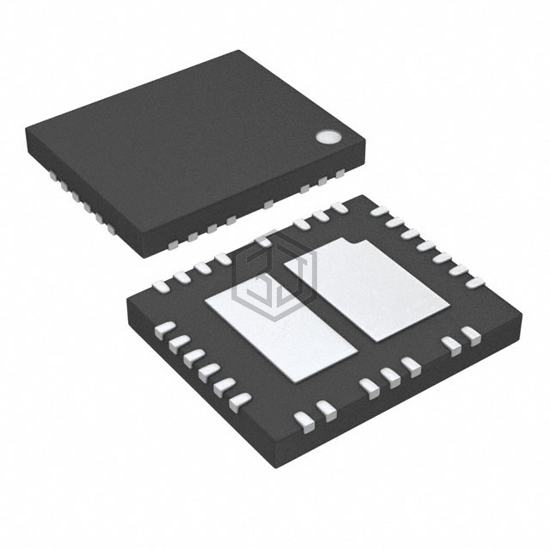

IC LED DRVR RGLTR PWM 3.3A 36QFN
LT3956IUHE#PBF is a PMIC - LED Drivers manufactured by Analog Devices Inc.. IC LED DRVR RGLTR PWM 3.3A 36QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - output 80V, package / case 36-WFQFN, 28 Leads, Exposed Pad.
In Stock: 8,735
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DC DC Regulator |
| Topology | Flyback, SEPIC, Step-Down (Buck), Step-Up (Boost) |
| Internal Switch(s) | Yes |
| Number of Outputs | 1 |
| Voltage - Supply (Min) | 4.5V |
| Voltage - Supply (Max) | 80V |
| Voltage - Output | 80V |
| Current - Output / Channel | 3.3A (Switch) |
| Frequency | 100kHz ~ 1MHz |
| Dimming | Analog, PWM |
| Applications | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 36-WFQFN, 28 Leads, Exposed Pad |
| Supplier Device Package | 36-QFN (5x6) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LT3956EUHE | Analog Devices Inc. | IC LED DRVR RGLTR PWM 3.3A 36QFN | 100% | View |
| LT3955EUHE#PBF | Analog Devices Inc. | IC LED DRVR RGLTR PWM 3.5A 36QFN | 96% | View |
| LT3954EUHE#TRPBF | Analog Devices Inc. | IC LED DRIVER RGLTR PWM 5A 36QFN | 86% | View |
| TPS92510DGQR | Texas Instruments | IC LED DRVR RGLTR PWM 10HVSSOP | 80% | View |
| TPS92510DGQ | Texas Instruments | IC LED DRVR RGLTR PWM 10HVSSOP | 80% | View |
| TPS92513HVDGQR | Texas Instruments | IC LED DRVR RGLTR PWM 10HVSSOP | 79% | View |
Submit your RFQ for LT3956IUHE#PBF and get a quote within 24 hours.
