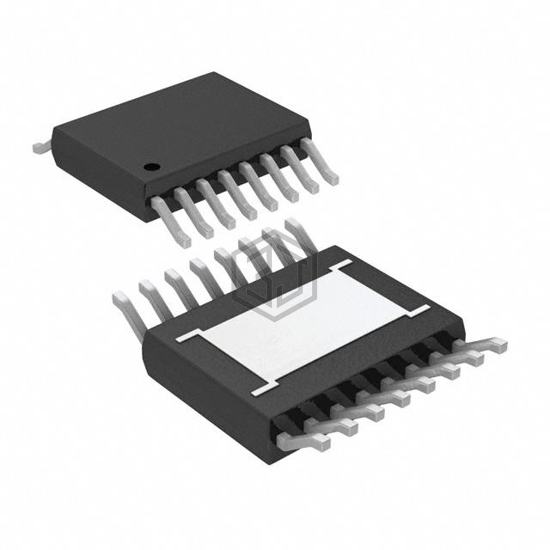

IC REG CTRLR FLYBACK 16TSSOP
LT3825EFE#TRPBF is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc.. IC REG CTRLR FLYBACK 16TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 9.7V ~ 18V, package / case 16-TSSOP (0.173", 4.40mm Width) Exposed Pad.
In Stock: 1,197
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive, Isolation Capable |
| Topology | Flyback |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 9.7V ~ 18V |
| Frequency - Switching | 100kHz |
| Duty Cycle (Max) | 88% |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Enable, Frequency Control, On Time Control |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 16-TSSOP-EP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LT3752EFE-1#PBF | Analog Devices Inc. | IC REG CTRLR FWRD CONV 38TSSOP | 99% | View |
| LT3753IFE#PBF | Analog Devices Inc. | IC REG CTRLR FWRD CONV 38TSSOP | 99% | View |
| LT3753EFE#TRPBF | Analog Devices Inc. | IC REG CTRLR FWRD CONV 38TSSOP | 99% | View |
| LT3752MPFE-1#PBF | Analog Devices Inc. | IC REG CTRLR FWRD CONV 38TSSOP | 99% | View |
| LT3752EFE#TRPBF | Analog Devices Inc. | IC REG CTRLR FWRD CONV 38TSSOP | 95% | View |
| LT3752HFE#WTRPBF | Analog Devices Inc. | ACTIVE CLAMP SYNC FOR CNTRS W/ I | 95% | View |
Submit your RFQ for LT3825EFE#TRPBF and get a quote within 24 hours.
