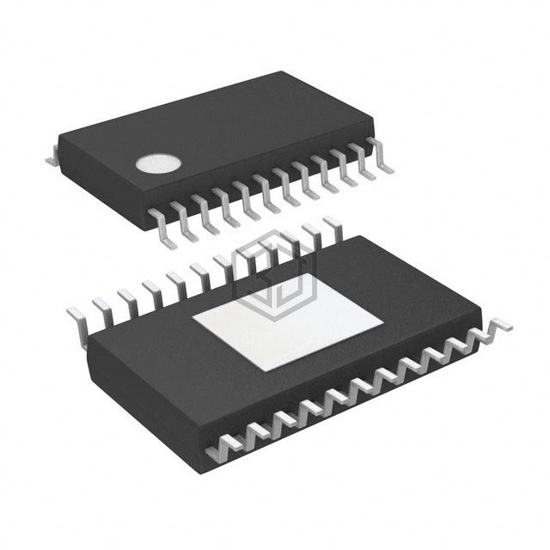

IC LED DRVR CTRL PWM 10A 24TSSOP
LT3796HFE is a PMIC - LED Drivers manufactured by Analog Devices Inc.. IC LED DRVR CTRL PWM 10A 24TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case 24-TSSOP (0.173", 4.40mm Width) Exposed Pad, current - output / channel 10A.
In Stock: 9,097
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | DC DC Controller |
| Topology | SEPIC, Step-Down (Buck), Step-Up (Boost) |
| Internal Switch(s) | No |
| Number of Outputs | 1 |
| Voltage - Supply (Min) | 6V |
| Voltage - Supply (Max) | 100V |
| Voltage - Output | - |
| Current - Output / Channel | 10A |
| Frequency | 100kHz ~ 1MHz |
| Dimming | Analog, PWM |
| Applications | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 24-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 24-TSSOP |
LT3796HFE is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LT3796HFE-1#PBF | Analog Devices Inc. | IC LED DRIVER CTRLR PWM 28TSSOP | 100% | View |
| LT3756JMSE-2#TRPBF | Analog Devices Inc. | IC LED DRIVER CTRLR PWM 16MSOP | 100% | View |
| LT3756HMSE-2#TRPBF | Analog Devices Inc. | IC LED DRIVER CTRLR PWM 16MSOP | 100% | View |
| LT3755JMSE-2#TRPBF | Analog Devices Inc. | IC LED DRIVER CTRLR PWM 16MSOP | 86% | View |
| LT3755HMSE-2#TRPBF | Analog Devices Inc. | IC LED DRIVER CTRLR PWM 16MSOP | 86% | View |
| TLD5097EPXUMA1 | Infineon Technologies | IC LED DRV CTRL PWM 90MA 14TSDSO | 69% | View |
Submit your RFQ for LT3796HFE and get a quote within 24 hours.
