IC REGULATOR

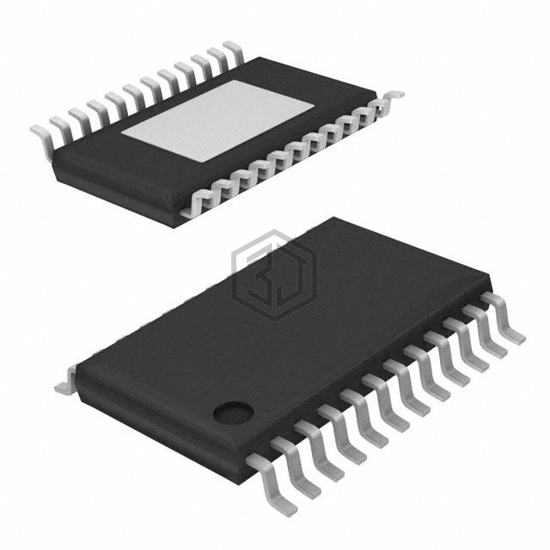

LT3782EFE is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc.. IC REGULATOR. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply (vcc/vdd) 6V ~ 40V, package / case 28-TSSOP (0.173", 4.40mm Width) Exposed Pad.
In Stock: 4,242
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | Transistor Driver |
| Function | Step-Up |
| Output Configuration | Positive |
| Topology | Boost |
| Number of Outputs | 2 |
| Output Phases | 2 |
| Voltage - Supply (Vcc/Vdd) | 6V ~ 40V |
| Frequency - Switching | 154kHz ~ 465kHz |
| Duty Cycle (Max) | 94% |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Enable, Reset, Soft Start |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 28-TSSOP-EP |
LT3782EFE is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LT3782IFE#PBF | Analog Devices Inc. | IC REG CTRLR BOOST 28TSSOP | 100% | View |
| LT3782EFE#PBF | Analog Devices Inc. | IC REG CTRLR BOOST 28TSSOP | 100% | View |
| LT3782EUFD#TRPBF | Analog Devices Inc. | IC REG CTRLR BOOST 28QFN | 100% | View |
| LT3782AEUFD#TRPBF | Analog Devices Inc. | IC REG CTRLR BOOST 28QFN | 100% | View |
| LT3782AIFE#TRPBF | Analog Devices Inc. | IC REG CTRLR BOOST 28TSSOP | 100% | View |
| LT3782EUFD#PBF | Analog Devices Inc. | IC REG CTRLR BOOST 28QFN | 100% | View |
Submit your RFQ for LT3782EFE and get a quote within 24 hours.
