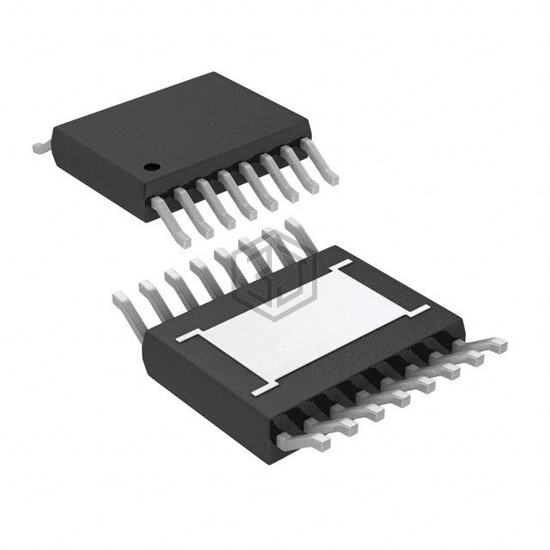

IC REG BUCK ADJ 700MA DL 16MSOP
LT3509IMSE#TRPBF is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Analog Devices Inc.. IC REG BUCK ADJ 700MA DL 16MSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 16-TFSOP (0.118", 3.00mm Width) Exposed Pad, current - output 700mA.
In Stock: 3,728
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 3.6V |
| Voltage - Input (Max) | 36V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 34.2V |
| Current - Output | 700mA |
| Frequency - Switching | 260kHz ~ 2.15MHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 16-MSOP-EP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LT3509IMSE#PBF | Analog Devices Inc. | IC REG BUCK ADJ 700MA DL 16MSOP | 100% | View |
| LT3509IDE#TRPBF | Analog Devices Inc. | IC REG BUCK ADJ 700MA DL 14DFN | 100% | View |
| LT3509IDE#PBF | Analog Devices Inc. | IC REG BUCK ADJ 700MA DL 14DFN | 100% | View |
| LM2675LD-ADJ/NOPB | Texas Instruments | IC REG BUCK ADJUSTABLE 1A 16WSON | 67% | View |
| LM2675MX-ADJ/NOPB | Texas Instruments | IC REG BUCK ADJUSTABLE 1A 8SOIC | 67% | View |
| LM2671LD-ADJ/NOPB | Texas Instruments | IC REG BUCK ADJ 500MA 16WSON | 67% | View |
Submit your RFQ for LT3509IMSE#TRPBF and get a quote within 24 hours.
