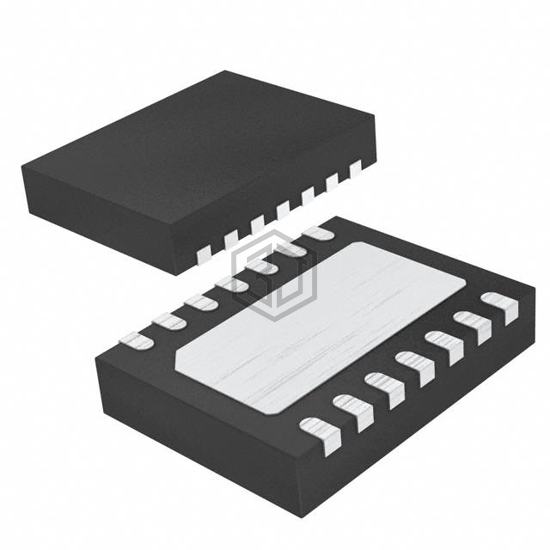

IC REG BUCK ADJ 700MA DL 14DFN
LT3509EDE#PBF is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Analog Devices Inc.. IC REG BUCK ADJ 700MA DL 14DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 14-WFDFN Exposed Pad, current - output 700mA.
In Stock: 1,216
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 3.6V |
| Voltage - Input (Max) | 36V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 34.2V |
| Current - Output | 700mA |
| Frequency - Switching | 260kHz ~ 2.15MHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 14-WFDFN Exposed Pad |
| Supplier Device Package | 14-DFN (4x3) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LT3509EMSE#PBF | Analog Devices Inc. | IC REG BUCK ADJ 700MA DL 16MSOP | 100% | View |
| LT3509EDE#TRPBF | Analog Devices Inc. | IC REG BUCK ADJ 700MA DL 14DFN | 100% | View |
| LM2670S-ADJ/NOPB | Texas Instruments | IC REG BUCK ADJ 3A TO263-7 | 57% | View |
| LM2673SD-ADJ/NOPB | Texas Instruments | IC REG BUCK ADJUSTABLE 3A 14VSON | 57% | View |
| LM2678SX-ADJ/NOPB | Texas Instruments | IC REG BUCK ADJ 5A TO263-7 | 57% | View |
| LM2670S-ADJ | National Semiconductor | SWITCHING REG, VOLTAGE-MODE, 5.4 | 57% | View |
