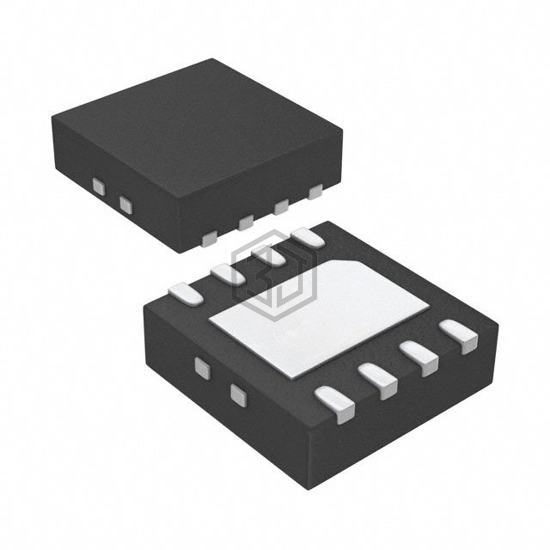

IC REG BUCK ADJUSTABLE 1.2A 8DFN
LT3505EDD#PBF is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Analog Devices Inc.. IC REG BUCK ADJUSTABLE 1.2A 8DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 8-WFDFN Exposed Pad, current - output 1.2A.
In Stock: 6,735
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3.6V |
| Voltage - Input (Max) | 36V |
| Voltage - Output (Min/Fixed) | 0.78V |
| Voltage - Output (Max) | 33.84V |
| Current - Output | 1.2A |
| Frequency - Switching | 200kHz ~ 3.01MHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-DFN (3x3) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LM43601AQPWPRQ1 | Texas Instruments | IC REG BUCK ADJ 1A 16HTSSOP | 88% | View |
| LM43600PWPT | Texas Instruments | IC REG BUCK ADJ 500MA 16HTSSOP | 80% | View |
| LM43600AQPWPTQ1 | Texas Instruments | IC REG BUCK ADJ 500MA 16HTSSOP | 80% | View |
| LM46001AQPWPRQ1 | Texas Instruments | IC REG BUCK ADJ 1A 16HTSSOP | 76% | View |
| LTC3646EMSE-1#PBF | Analog Devices Inc. | IC REG BUCK ADJUSTABLE 1A 16MSOP | 72% | View |
| LT3976IUDD#PBF | Analog Devices Inc. | IC REG BUCK ADJUSTABLE 5A 24QFN | 70% | View |
Submit your RFQ for LT3505EDD#PBF and get a quote within 24 hours.
