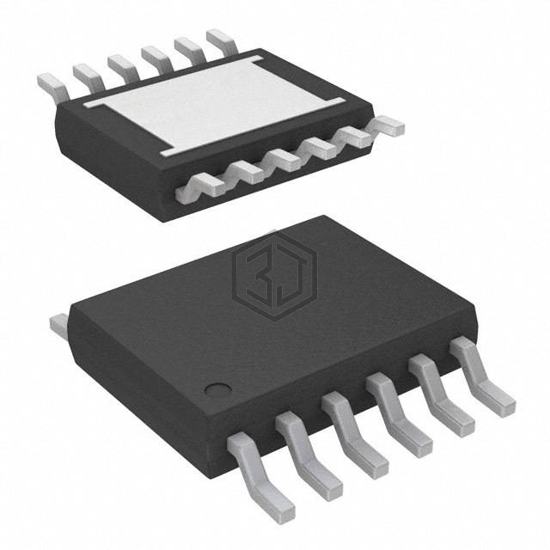

IC REG LIN POS ADJ 500MA 12MSOP
LT3066IMSE is a PMIC - Voltage Regulators - Linear manufactured by Analog Devices Inc.. IC REG LIN POS ADJ 500MA 12MSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 12-TSSOP (0.118", 3.00mm Width) Exposed Pad, current - supply (max) 25 mA.
In Stock: 4,591
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 45V |
| Voltage - Output (Min/Fixed) | 0.6V |
| Voltage - Output (Max) | 19V |
| Voltage Dropout (Max) | 0.51V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 125 µA |
| Current - Supply (Max) | 25 mA |
| PSRR | 85dB (120Hz) |
| Control Features | Current Limit, Enable, Power Good, Soft Start |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 12-TSSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 12-MSOP-EP |
LT3066IMSE is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LT3066IDE#TRPBF | Analog Devices Inc. | IC REG LIN POS ADJ 500MA 12DFN | 100% | View |
| LT3066EDE#TRPBF | Analog Devices Inc. | IC REG LIN POS ADJ 500MA 12DFN | 100% | View |
| LT3045IMSE-1#PBF | Analog Devices Inc. | IC REG LIN POS PROG 500MA 12MSOP | 62% | View |
| LT3045IMSE#PBF | Analog Devices Inc. | IC REG LIN POS PROG 500MA 12MSOP | 62% | View |
| LT3045HMSE#TRPBF | Analog Devices Inc. | IC REG LIN POS PROG 500MA 12MSOP | 62% | View |
| MIC5209YML-T5 | Microchip Technology | IC REG LINEAR POS ADJ 500MA 8DFN | 57% | View |
Submit your RFQ for LT3066IMSE and get a quote within 24 hours.
