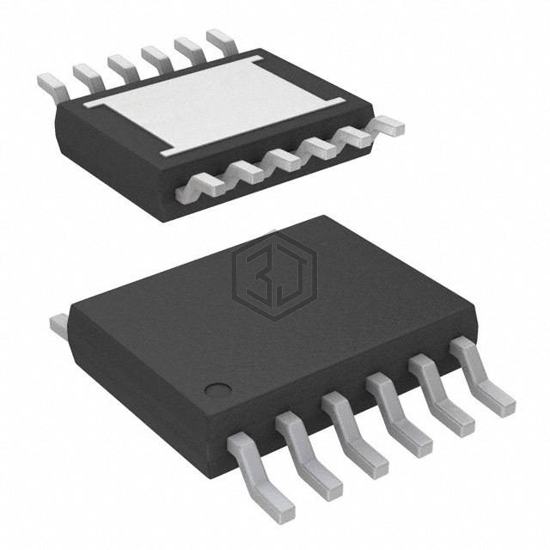

IC REG LINEAR 5V 500MA 12MSOP
LT3066EMSE-5 is a PMIC - Voltage Regulators - Linear manufactured by Analog Devices Inc.. IC REG LINEAR 5V 500MA 12MSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 12-TSSOP (0.118", 3.00mm Width) Exposed Pad, current - supply (max) 25 mA.
In Stock: 5,740
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 45V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.51V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 125 µA |
| Current - Supply (Max) | 25 mA |
| PSRR | 70dB (120Hz) |
| Control Features | Current Limit, Enable, Power Good, Soft Start |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 12-TSSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 12-MSOP-EP |
LT3066EMSE-5 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LT3065IMSE-5#TRPBF | Analog Devices Inc. | IC REG LINEAR 5V 500MA 12MSOP | 99% | View |
| TLE4276GV50ATMA4 | Infineon Technologies | IC REG LIN 5V 400MA TO220-5-122 | 91% | View |
| LT3055MPMSE-3.3#TRPBF | Analog Devices Inc. | IC REG LINEAR 3.3V 500MA 16MSOP | 87% | View |
| LT3055IMSE-3.3#TRPBF | Analog Devices Inc. | IC REG LINEAR 3.3V 500MA 16MSOP | 87% | View |
| LT3065IMSE-2.5#TRPBF | Analog Devices Inc. | IC REG LINEAR 2.5V 500MA 12MSOP | 79% | View |
| LT3065IMSE-1.5#PBF | Analog Devices Inc. | IC REG LINEAR 1.5V 500MA 12MSOP | 79% | View |
Submit your RFQ for LT3066EMSE-5 and get a quote within 24 hours.
