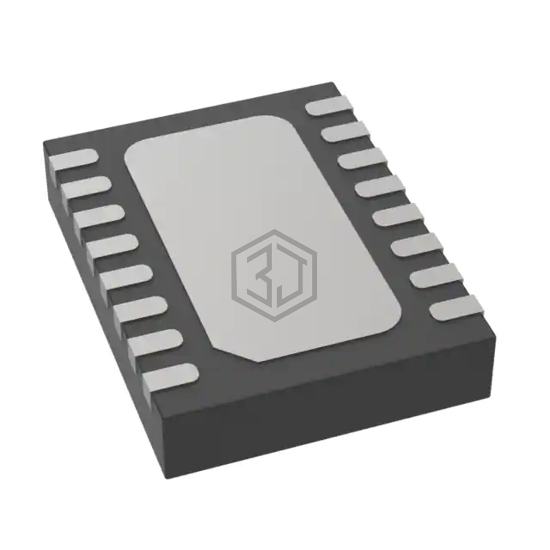

IC REG LINEAR 5V 500MA 16DFN
LT3055EDE-5 is a PMIC - Voltage Regulators - Linear manufactured by Analog Devices Inc.. IC REG LINEAR 5V 500MA 16DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 16-WFDFN Exposed Pad, current - supply (max) 25 mA.
In Stock: 9,374
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 45V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.59V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 130 µA |
| Current - Supply (Max) | 25 mA |
| PSRR | 66dB (120Hz) |
| Control Features | Current Limit, Enable, Power Good, Soft Start |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-WFDFN Exposed Pad |
| Supplier Device Package | 16-DFN (4x3) |
LT3055EDE-5 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LT3055IDE-5#TRPBF | Analog Devices Inc. | IC REG LINEAR 5V 500MA 16DFN | 100% | View |
| LT3055MPMSE-5#PBF | Analog Devices Inc. | IC REG LINEAR 5V 500MA 16MSOP | 100% | View |
| TLE4276DV50 | Infineon Technologies | IC REG LINEAR VOLT TLE4276 | 89% | View |
| LT3065MPMSE-3.3#PBF | Analog Devices Inc. | IC REG LINEAR 3.3V 500MA 12MSOP | 86% | View |
| MIC5209-5.0YS-TR | Microchip Technology | IC REG LINEAR 5V 500MA SOT223-3 | 78% | View |
| LT3065IDD-1.8#TRPBF | Analog Devices Inc. | IC REG LINEAR 1.8V 500MA 10DFN | 78% | View |
