IC REG LIN NEG ADJ 1.5A 12MSOP

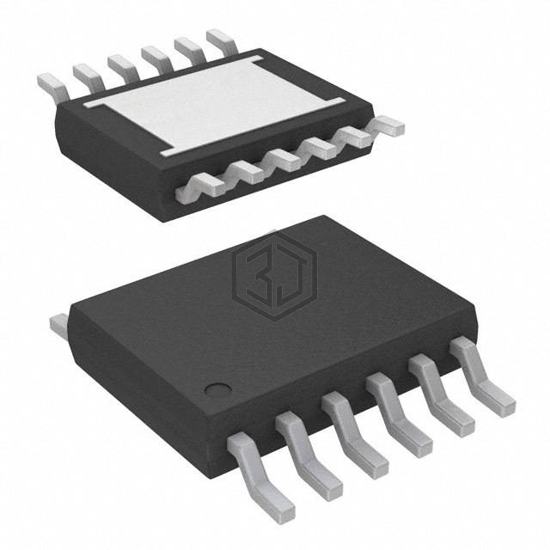

LT3015MPMSE#TR is a PMIC - Voltage Regulators - Linear manufactured by Analog Devices Inc.. IC REG LIN NEG ADJ 1.5A 12MSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 12-TSSOP (0.118", 3.00mm Width) Exposed Pad, current - supply (max) 70 mA.
In Stock: 1,802
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Negative |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | -30V |
| Voltage - Output (Min/Fixed) | -1.22V |
| Voltage - Output (Max) | -29.5V |
| Voltage Dropout (Max) | 0.5V @ 1.5A |
| Current - Output | 1.5A |
| Current - Quiescent (Iq) | 2.4 mA |
| Current - Supply (Max) | 70 mA |
| PSRR | 65dB (120Hz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 12-TSSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 12-MSOP-EP |
LT3015MPMSE#TR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LT3015IDD#PBF | Analog Devices Inc. | IC REG LIN NEG ADJ 1.5A 8DFN | 100% | View |
| LT3015EDD#TRPBF | Analog Devices Inc. | IC REG LIN NEG ADJ 1.5A 8DFN | 100% | View |
| LT3015EMSE#TRPBF | Analog Devices Inc. | IC REG LIN NEG ADJ 1.5A 12MSOP | 100% | View |
| LT3015IDD#TRPBF | Analog Devices Inc. | IC REG LIN NEG ADJ 1.5A 8DFN | 100% | View |
| LT3015EMSE#PBF | Analog Devices Inc. | IC REG LIN NEG ADJ 1.5A 12MSOP | 100% | View |
| LT3015MPMSE#TRPBF | Analog Devices Inc. | IC REG LIN NEG ADJ 1.5A 12MSOP | 100% | View |
Submit your RFQ for LT3015MPMSE#TR and get a quote within 24 hours.
