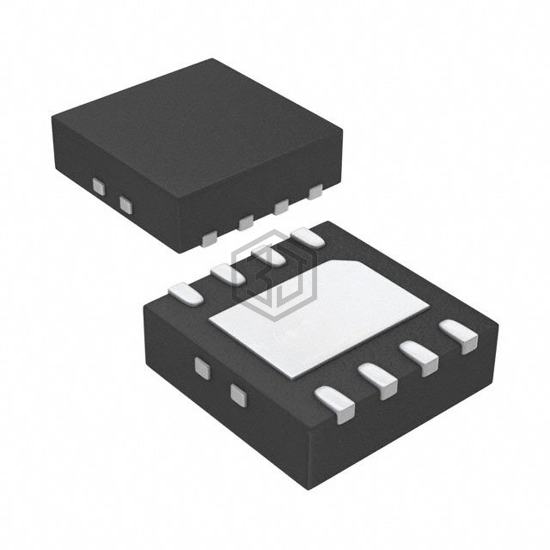

IC REG LINEAR -5V 1.5A 8DFN
LT3015EDD-5#TRPBF is a PMIC - Voltage Regulators - Linear manufactured by Analog Devices Inc.. IC REG LINEAR -5V 1.5A 8DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 8-WFDFN Exposed Pad, current - supply (max) 70 mA.
In Stock: 432
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Negative |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | -30V |
| Voltage - Output (Min/Fixed) | -5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.5V @ 1.5A |
| Current - Output | 1.5A |
| Current - Quiescent (Iq) | 2.4 mA |
| Current - Supply (Max) | 70 mA |
| PSRR | 58dB (120Hz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-DFN (3x3) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LT3015IDD-15#PBF | Analog Devices Inc. | IC REG LINEAR -15V 1.5A 8DFN | 100% | View |
| LT3015EDD-2.5#TRPBF | Analog Devices Inc. | IC REG LINEAR -2.5V 1.5A 8DFN | 100% | View |
| LT3015EMSE-3.3#TRPBF | Analog Devices Inc. | IC REG LINEAR -3.3V 1.5A 12MSOP | 100% | View |
| LT3015IMSE-15#PBF | Analog Devices Inc. | IC REG LINEAR -15V 1.5A 12MSOP | 100% | View |
| LT3015IDD-2.5#PBF | Analog Devices Inc. | IC REG LINEAR -2.5V 1.5A 8DFN | 100% | View |
| LT3015EMSE-5#PBF | Analog Devices Inc. | IC REG LINEAR -5V 1.5A 12MSOP | 100% | View |
Submit your RFQ for LT3015EDD-5#TRPBF and get a quote within 24 hours.
