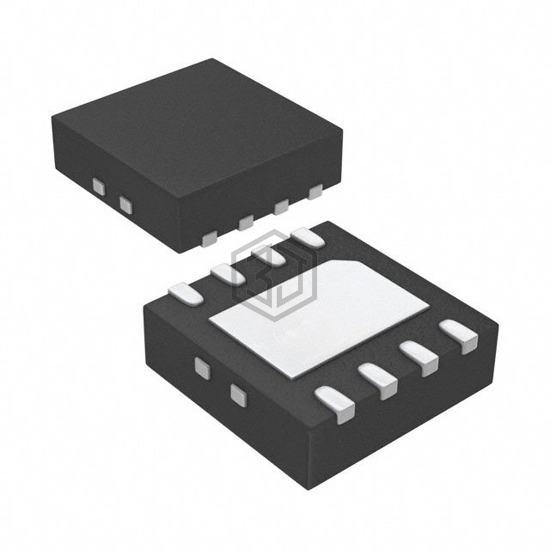

IC REG LINEAR POS ADJ 20MA 8DFN
LT3014BEDD is a PMIC - Voltage Regulators - Linear manufactured by Analog Devices Inc.. IC REG LINEAR POS ADJ 20MA 8DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 8-WFDFN Exposed Pad, current - supply (max) 1 mA.
In Stock: 1,873
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 80V |
| Voltage - Output (Min/Fixed) | 1.22V |
| Voltage - Output (Max) | 60V |
| Voltage Dropout (Max) | 0.57V @ 20mA |
| Current - Output | 20mA |
| Current - Quiescent (Iq) | 20 µA |
| Current - Supply (Max) | 1 mA |
| PSRR | 70dB (120Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-DFN (3x3) |
LT3014BEDD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LT3014IDD#PBF | Analog Devices Inc. | IC REG LINEAR POS ADJ 20MA 8DFN | 100% | View |
| LT3014BMPS5#TRPBF | Analog Devices Inc. | IC REG LIN POS ADJ 20MA TSOT23-5 | 100% | View |
| LT3014BHVIDD#TRPBF | Analog Devices Inc. | IC REG LINEAR POS ADJ 20MA 8DFN | 100% | View |
| LT3014BEDD#PBF | Analog Devices Inc. | IC REG LINEAR POS ADJ 20MA 8DFN | 100% | View |
| LT3014IS5#TRMPBF | Analog Devices Inc. | IC REG LIN POS ADJ 20MA TSOT23-5 | 100% | View |
| LT3014BES5#TRPBF | Analog Devices Inc. | IC REG LIN POS ADJ 20MA TSOT23-5 | 100% | View |
Submit your RFQ for LT3014BEDD and get a quote within 24 hours.
