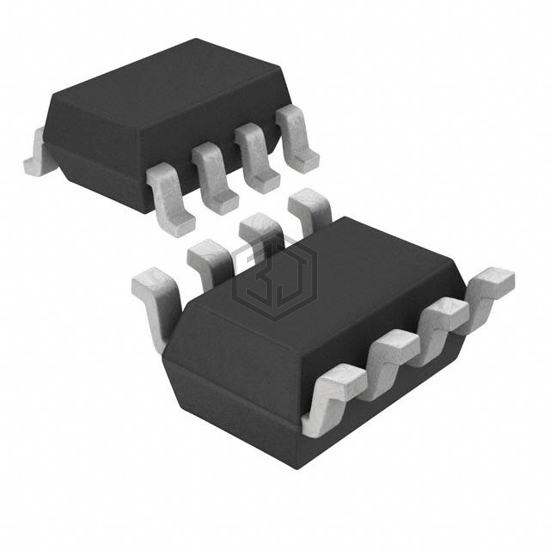

IC REG LIN POS ADJ 20MA SC70-8
LT3009ESC8 is a PMIC - Voltage Regulators - Linear manufactured by Analog Devices Inc.. IC REG LIN POS ADJ 20MA SC70-8. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 8-VFSOP (0.049", 1.25mm Width), current - supply (max) 1 mA.
In Stock: 3,357
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 20V |
| Voltage - Output (Min/Fixed) | 0.6V |
| Voltage - Output (Max) | 19.5V |
| Voltage Dropout (Max) | 0.45V @ 20mA |
| Current - Output | 20mA |
| Current - Quiescent (Iq) | 6 µA |
| Current - Supply (Max) | 1 mA |
| PSRR | 72dB (120Hz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-VFSOP (0.049", 1.25mm Width) |
| Supplier Device Package | SC-70-8 |
LT3009ESC8 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LT3009EDC#TRPBF | Analog Devices Inc. | IC REG LINEAR POS ADJ 20MA 6DFN | 100% | View |
| LT3085IMS8E#TRPBF | Analog Devices Inc. | IC REG LIN POS ADJ 500MA 8MSOP | 56% | View |
| LT3085MPMS8E#TRPBF | Analog Devices Inc. | IC REG LIN POS ADJ 500MA 8MSOP | 56% | View |
| LT3014HVES5#TRMPBF | Analog Devices Inc. | IC REG LIN POS ADJ 20MA TSOT23-5 | 51% | View |
| LT3014EDD#TRPBF | Analog Devices Inc. | IC REG LINEAR POS ADJ 20MA 8DFN | 51% | View |
| LT3014BIDD#PBF | Analog Devices Inc. | IC REG LINEAR POS ADJ 20MA 8DFN | 51% | View |
Submit your RFQ for LT3009ESC8 and get a quote within 24 hours.
