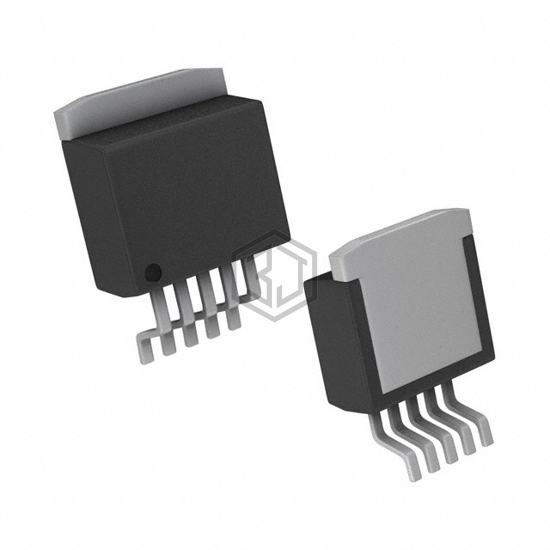

IC REG LINEAR POS ADJ 3A 5DDPAK
LT1764EQ#PBF is a PMIC - Voltage Regulators - Linear manufactured by Analog Devices Inc.. IC REG LINEAR POS ADJ 3A 5DDPAK. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case TO-263-6, D²Pak (5 Leads + Tab), TO-263BA, current - supply (max) 200 mA.
In Stock: 8,957
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 20V |
| Voltage - Output (Min/Fixed) | 1.21V |
| Voltage - Output (Max) | 20V |
| Voltage Dropout (Max) | 0.66V @ 3A |
| Current - Output | 3A |
| Current - Quiescent (Iq) | 1.5 mA |
| Current - Supply (Max) | 200 mA |
| PSRR | 63dB (120Hz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA |
| Supplier Device Package | 5-DDPAK |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LT1764AEFE#TRPBF | Analog Devices Inc. | IC REG LINEAR POS ADJ 3A 16TSSOP | 100% | View |
| LT1764AEQ#PBF | Analog Devices Inc. | IC REG LINEAR POS ADJ 3A 5DDPAK | 100% | View |
| LT1764AEQ#TRPBF | Analog Devices Inc. | IC REG LINEAR POS ADJ 3A 5DDPAK | 100% | View |
| LT1764EQ#TRPBF | Analog Devices Inc. | IC REG LINEAR POS ADJ 3A 5DDPAK | 100% | View |
| LT1764AMPQ#PBF | Analog Devices Inc. | IC REG LINEAR POS ADJ 3A 5DDPAK | 100% | View |
| LT1764AEFE#PBF | Analog Devices Inc. | IC REG LINEAR POS ADJ 3A 16TSSOP | 100% | View |
Submit your RFQ for LT1764EQ#PBF and get a quote within 24 hours.
