IC REG LIN POS ADJ 500MA 12DFN

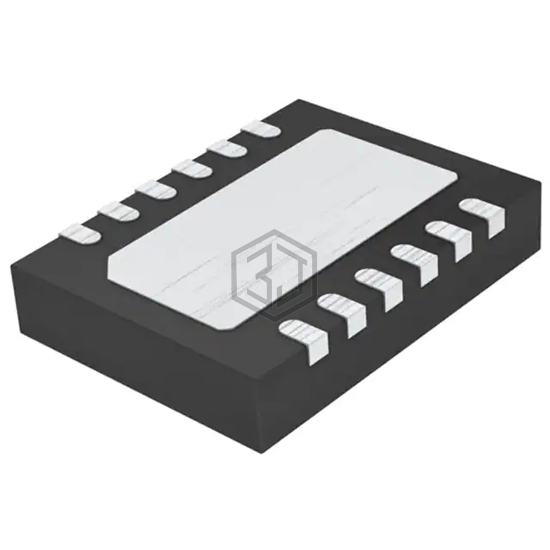

LT1763CDE is a PMIC - Voltage Regulators - Linear manufactured by Analog Devices Inc.. IC REG LIN POS ADJ 500MA 12DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 12-WFDFN Exposed Pad, current - supply (max) 16 mA.
In Stock: 8,652
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 20V |
| Voltage - Output (Min/Fixed) | 1.22V |
| Voltage - Output (Max) | 20V |
| Voltage Dropout (Max) | 0.45V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 75 µA |
| Current - Supply (Max) | 16 mA |
| PSRR | 65dB (120Hz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 12-WFDFN Exposed Pad |
| Supplier Device Package | 12-DFN (4x3) |
LT1763CDE is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LT1763MPS8#TRPBF | Analog Devices Inc. | IC REG LINEAR POS ADJ 500MA 8SO | 100% | View |
| LT1763MPS8#PBF | Analog Devices Inc. | IC REG LINEAR POS ADJ 500MA 8SO | 100% | View |
| LT1763CS8#TRMPBF | Analog Devices Inc. | LT1763CS8#TRMPBF | 100% | View |
| MIC29372WU-TR | Microchip Technology | IC REG LIN POS ADJ 750MA TO263-5 | 75% | View |
| LP3964ES-ADJ | National Semiconductor | IC REG LIN POS ADJ 800MA DDPAK | 61% | View |
| LP3874ES-ADJ | National Semiconductor | IC REG LIN POS ADJ 800MA DDPAK | 61% | View |
Submit your RFQ for LT1763CDE and get a quote within 24 hours.
