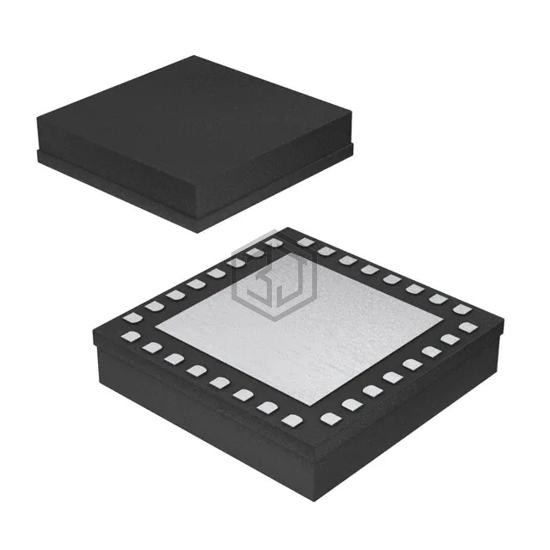

VCO 4.5GHZ/9GHZ 2-13V 5X5MM
HMC510LP5TR is a VCOs (Voltage Controlled Oscillators) manufactured by Analog Devices Inc.. VCO 4.5GHZ/9GHZ 2-13V 5X5MM. Key specifications: operating temperature -40°C ~ 85°C, voltage - supply 5V, package / case 32-VFQFN Exposed Pad, size / dimension 0.197" L x 0.197" W (5.00mm x 5.00mm).
In Stock: 1,838
| Attribute | Value |
|---|---|
| Product Status | Active |
| Frequency Range | 4.225 ~ 4.775GHz, 8.45 ~ 9.55GHz |
| Frequency - Center | 4.5GHz, 9GHz |
| Voltage - Supply | 5V |
| Tuning Voltage (VDC) | 2 V ~ 13 V |
| 2nd Harmonic, Typ (dBc) | 15 |
| Icc Max | 360mA |
| Pushing (MHz/V) | 20 |
| Power (dBm) | -6±2, 11±3, 12.5±2.5 |
| Phase Noise Typ (dBc/Hz) | -116 |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 32-VFQFN Exposed Pad |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Height | 0.039" (1.00mm) |
Submit your RFQ for HMC510LP5TR and get a quote within 24 hours.
