VCO 6.7475/13.495GHZ 2-13V 5X5MM

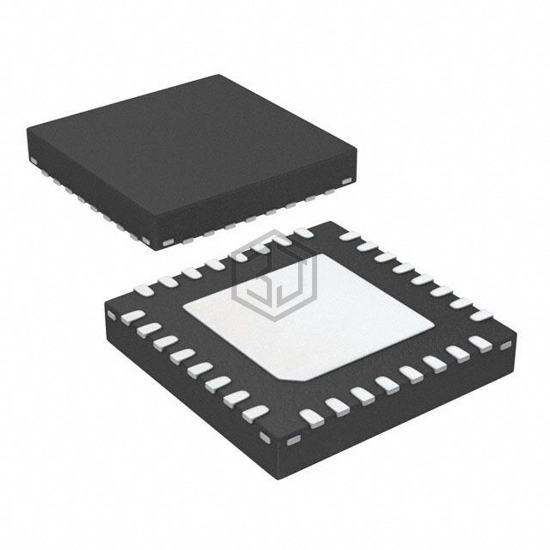

HMC1169LP5ETR is a VCOs (Voltage Controlled Oscillators) manufactured by Analog Devices Inc.. VCO 6.7475/13.495GHZ 2-13V 5X5MM. Key specifications: operating temperature -40°C ~ 85°C, voltage - supply 5V, package / case 32-VFQFN Exposed Pad, CSP, size / dimension 0.197" L x 0.197" W (5.00mm x 5.00mm).
In Stock: 475
| Attribute | Value |
|---|---|
| Product Status | Active |
| Frequency Range | 6.46 ~ 7.035GHz, 12.92 ~ 14.07GHz |
| Frequency - Center | 6.7475GHz, 13.495GHz |
| Voltage - Supply | 5V |
| Tuning Voltage (VDC) | 2 V ~ 13 V |
| 2nd Harmonic, Typ (dBc) | 22 |
| Icc Max | 260mA |
| Pushing (MHz/V) | 2 |
| Power (dBm) | 3 ±4, 11 ±4 |
| Phase Noise Typ (dBc/Hz) | -86 |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 32-VFQFN Exposed Pad, CSP |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Height | 0.039" (1.00mm) |
Submit your RFQ for HMC1169LP5ETR and get a quote within 24 hours.
