VCO 6.0075GHZ/12.015GHZ 2-13V

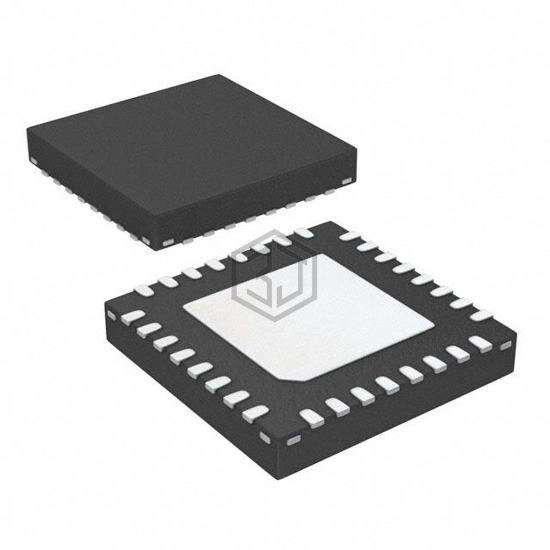

HMC1166LP5E is a VCOs (Voltage Controlled Oscillators) manufactured by Analog Devices Inc.. VCO 6.0075GHZ/12.015GHZ 2-13V. Key specifications: operating temperature -40°C ~ 85°C, voltage - supply 5V, package / case 32-VFQFN Exposed Pad, CSP, size / dimension 0.197" L x 0.197" W (5.00mm x 5.00mm).
In Stock: 322
| Attribute | Value |
|---|---|
| Product Status | Active |
| Frequency Range | 5.705 ~ 6.31GHz, 11.41 ~ 12.62GHz |
| Frequency - Center | 6.0075GHz, 12.015GHz |
| Voltage - Supply | 5V |
| Tuning Voltage (VDC) | 2 V ~ 13 V |
| 2nd Harmonic, Typ (dBc) | 20 |
| Icc Max | 270mA |
| Pushing (MHz/V) | 5 |
| Power (dBm) | 4.5±4.5, 11±4 |
| Phase Noise Typ (dBc/Hz) | -89 |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 32-VFQFN Exposed Pad, CSP |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Height | 0.039" (1.00mm) |
Submit your RFQ for HMC1166LP5E and get a quote within 24 hours.
