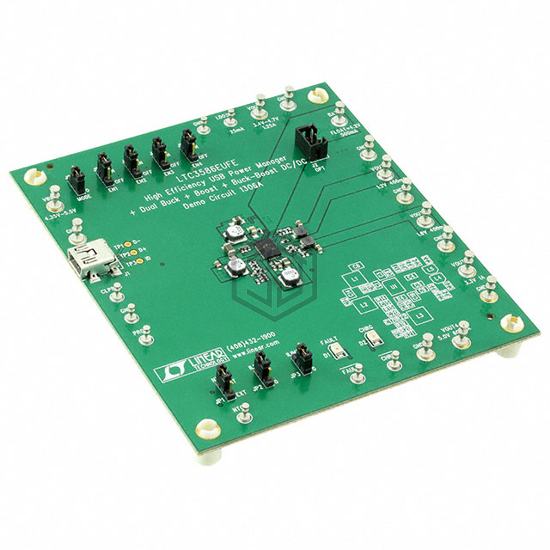

DC1306A
EVAL BOARD FOR LTC3586
DC1306A is a Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS manufactured by Analog Devices Inc.. EVAL BOARD FOR LTC3586. Key specifications: voltage - input 4.35V ~ 5.5V, frequency - switching 2.25MHz.
In Stock: 1
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Main Purpose | DC/DC, Step Up or Down with LDO |
| Outputs and Type | 7, Non-Isolated |
| Power - Output | - |
| Voltage - Output | - |
| Current - Output | - |
| Voltage - Input | 4.35V ~ 5.5V |
| Regulator Topology | Boost, Buck |
| Frequency - Switching | 2.25MHz |
| Board Type | Fully Populated |
| Supplied Contents | Board(s) |
| Utilized IC / Part | LTC3586 |
Frequently Asked Questions
DC1306A is a Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS manufactured by Analog Devices Inc.. EVAL BOARD FOR LTC3586
The supply voltage of DC1306A is 4.35V ~ 5.5V.
The frequency of DC1306A is 2.25MHz.
