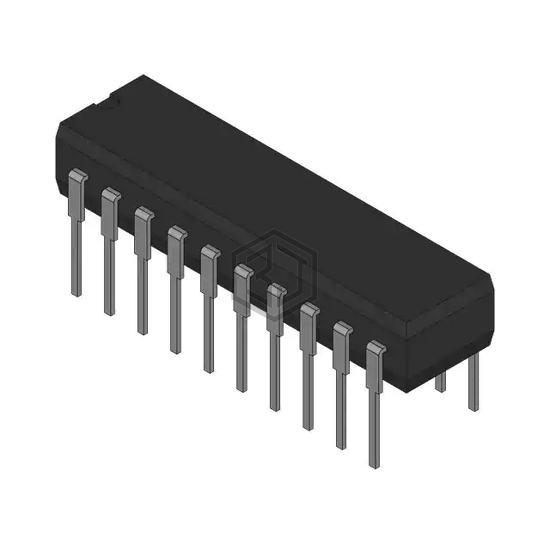

QUAD 8-BIT VOLTAGE OUT DAC +REF
DAC8426BR/883C is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. QUAD 8-BIT VOLTAGE OUT DAC +REF. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - supply, digital 13.5V ~ 16.5V, package / case 20-CDIP (0.300", 7.62mm).
In Stock: 81
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Bits | 8 |
| Number of D/A Converters | 4 |
| Settling Time | 3µs (Typ) |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | Parallel |
| Reference Type | Internal |
| Voltage - Supply, Analog | 13.5V ~ 16.5V |
| Voltage - Supply, Digital | 13.5V ~ 16.5V |
| INL/DNL (LSB) | ±0.5, ±1 |
| Architecture | R-2R |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | 20-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 20-CERDIP |
| Mounting Type | Through Hole |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DAC8426FR | Analog Devices Inc. | QUAD 8-BIT VOLTAGE OUT DAC +REF | 100% | View |
| DAC8426EP | Analog Devices Inc. | QUAD 8-BIT VOLTAGE OUT DAC +REF | 100% | View |
| DAC8426BR | Analog Devices Inc. | QUAD 8-BIT VOLTAGE OUT DAC +REF | 100% | View |
| DAC8426AR | Analog Devices Inc. | QUAD 8-BIT VOLTAGE OUT DAC +REF | 100% | View |
| AD558TD | Analog Devices Inc. | IC DAC 8BIT V-OUT 16CDIP | 66% | View |
| 5962-8778901EA | Analog Devices Inc. | IC DAC 8BIT V-OUT 16CERDIP | 66% | View |
Submit your RFQ for DAC8426BR/883C and get a quote within 24 hours.
