DUAL 12-BIT MULTIPLYING DAC

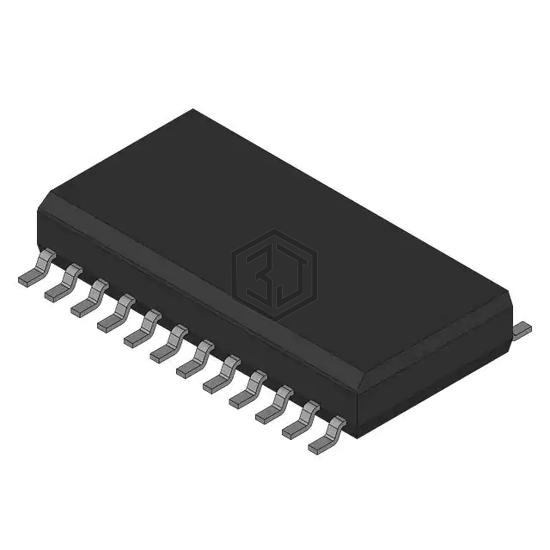

DAC8221HS is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. DUAL 12-BIT MULTIPLYING DAC. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply, digital 4.75V ~ 15.25V, package / case 24-SOIC (0.295", 7.50mm Width).
In Stock: 78
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Bits | 12 |
| Number of D/A Converters | 2 |
| Settling Time | 1µs |
| Output Type | Current - Unbuffered |
| Differential Output | No |
| Data Interface | Parallel |
| Reference Type | External |
| Voltage - Supply, Analog | 4.75V ~ 5.25V |
| Voltage - Supply, Digital | 4.75V ~ 15.25V |
| INL/DNL (LSB) | ±0.4LSB, ±0.2 |
| Architecture | Multiplying DAC |
| Operating Temperature | 0°C ~ 70°C |
| Package / Case | 24-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 24-SOIC |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DAC8043AFSZ-REEL7 | Analog Devices Inc. | IC DAC 12BIT A-OUT 8SOIC | 92% | View |
| AD7545AKPZ | Analog Devices Inc. | IC DAC 12BIT A-OUT 20PLCC | 92% | View |
| LTC7545AKSW#PBF | Analog Devices Inc. | IC DAC 12BIT A-OUT 20SOIC | 92% | View |
| MAX543ACSA+T | Analog Devices Inc./Maxim Integrated | IC DAC 12BIT A-OUT 8SOIC | 92% | View |
| LTC1591CG#TRPBF | Analog Devices Inc. | IC DAC 14BIT A-OUT 28SSOP | 91% | View |
| LTC1596BCSW#TRPBF | Analog Devices Inc. | IC DAC 16BIT A-OUT 16SOIC | 90% | View |
Submit your RFQ for DAC8221HS and get a quote within 24 hours.
