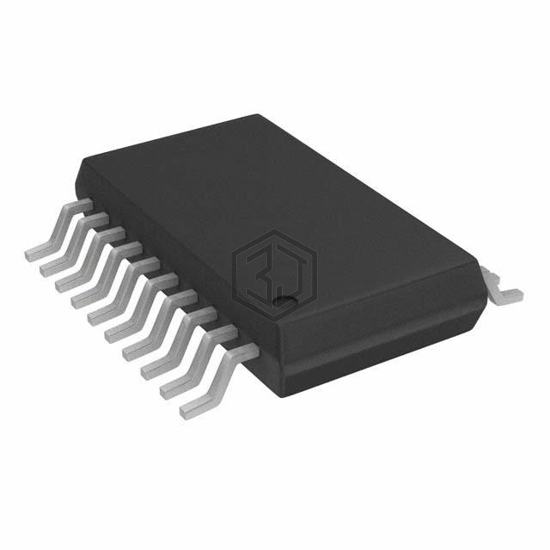

DGTL ISO 1000VRMS 6CH GP 20QSOP
ADUM7643CRQZ is a Digital Isolators manufactured by Analog Devices Inc.. DGTL ISO 1000VRMS 6CH GP 20QSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - supply 3V ~ 5.5V, package / case 20-SSOP (0.154", 3.90mm Width).
In Stock: 4,628
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic Coupling |
| Type | General Purpose |
| Isolated Power | No |
| Number of Channels | 6 |
| Inputs - Side 1/Side 2 | 3/3 |
| Channel Type | Unidirectional |
| Voltage - Isolation | 1000Vrms |
| Common Mode Transient Immunity (Min) | 15kV/µs |
| Data Rate | 25Mbps |
| Propagation Delay tpLH / tpHL (Max) | 50ns, 50ns |
| Pulse Width Distortion (Max) | 6ns |
| Rise / Fall Time (Typ) | 2ns, 2ns |
| Voltage - Supply | 3V ~ 5.5V |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Package / Case | 20-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 20-QSOP |
Submit your RFQ for ADUM7643CRQZ and get a quote within 24 hours.
