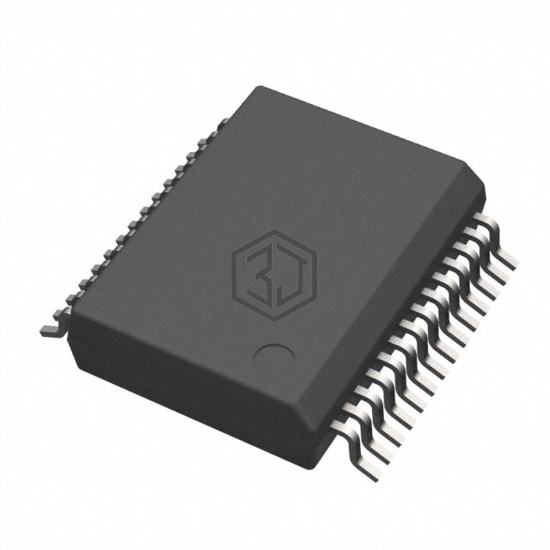

DGTL ISO 5KV 4CH GEN PRP 28SOIC
ADUM6422ABRNZ3 is a Digital Isolators manufactured by Analog Devices Inc.. DGTL ISO 5KV 4CH GEN PRP 28SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 1.7V ~ 5.5V, package / case 28-BSSOP (0.295", 7.50mm Width).
In Stock: 3,953
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic Coupling |
| Type | General Purpose |
| Isolated Power | Yes |
| Number of Channels | 4 |
| Inputs - Side 1/Side 2 | 2/2 |
| Channel Type | Unidirectional |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 75kV/µs |
| Data Rate | 100Mbps |
| Propagation Delay tpLH / tpHL (Max) | 17ns, 17ns |
| Pulse Width Distortion (Max) | 5ns |
| Rise / Fall Time (Typ) | 2.5ns, 2.5ns |
| Voltage - Supply | 1.7V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 28-BSSOP (0.295", 7.50mm Width) |
| Supplier Device Package | 28-SOIC-W-FP |
