ISO IGBT GATE DRIVERW/FLYBACK CO

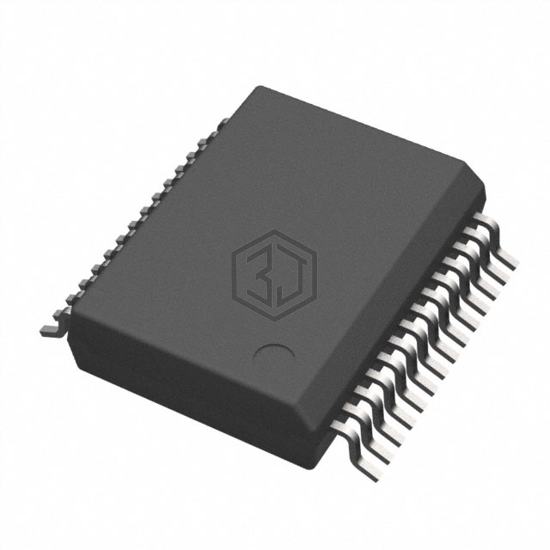

ADUM4138WBRNZ-RL is a Isolators - Gate Drivers manufactured by Analog Devices Inc.. ISO IGBT GATE DRIVERW/FLYBACK CO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, package / case 28-BSSOP (0.295", 7.50mm Width), approval agency CSA, UL, VDE.
In Stock: 6,585
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 150kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 130ns, 121ns |
| Pulse Width Distortion (Max) | - |
| Rise / Fall Time (Typ) | 95ns, 100ns |
| Current - Output High, Low | - |
| Current - Peak Output | 6A |
| Voltage - Forward (Vf) (Typ) | - |
| Current - DC Forward (If) (Max) | - |
| Voltage - Output Supply | 12V ~ 25V |
| Operating Temperature | -40°C ~ 150°C |
| Mounting Type | Surface Mount |
| Package / Case | 28-BSSOP (0.295", 7.50mm Width) |
| Supplier Device Package | 28-SOIC-W-FP |
| Approval Agency | CSA, UL, VDE |
Submit your RFQ for ADUM4138WBRNZ-RL and get a quote within 24 hours.
