IGBT GATE DRIVER W/ SLEW RATE CO

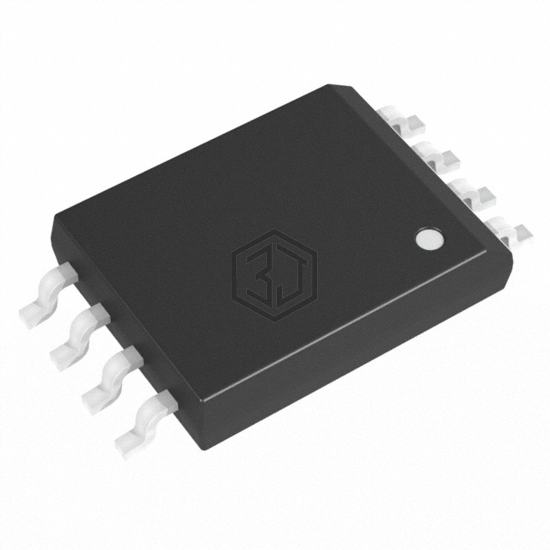

ADUM4122CRIZ is a Isolators - Gate Drivers manufactured by Analog Devices Inc.. IGBT GATE DRIVER W/ SLEW RATE CO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 8-SOIC (0.295", 7.50mm Width), approval agency CQC, CSA, UL, VDE.
In Stock: 6,900
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 150kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 40ns, 48ns |
| Pulse Width Distortion (Max) | 30ns |
| Rise / Fall Time (Typ) | 17ns, 17ns |
| Current - Output High, Low | 3A, 3A |
| Current - Peak Output | 2A |
| Voltage - Forward (Vf) (Typ) | - |
| Current - DC Forward (If) (Max) | - |
| Voltage - Output Supply | 11.6V ~ 35V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 8-SOIC-IC |
| Approval Agency | CQC, CSA, UL, VDE |
Submit your RFQ for ADUM4122CRIZ and get a quote within 24 hours.
