INVERTING CHARGE PUMP & LOW NOIS

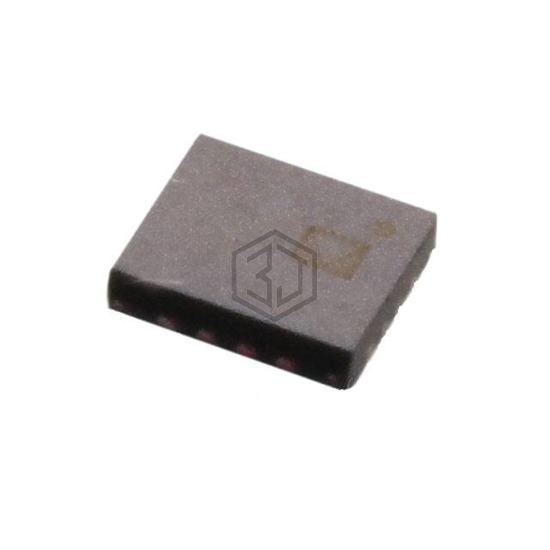

ADP5600ACPZ-R7 is a PMIC - Voltage Regulators - Linear + Switching manufactured by Analog Devices Inc.. INVERTING CHARGE PUMP & LOW NOIS. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 2.7V ~ 16V, package / case 16-WQFN Exposed Pad, CSP.
In Stock: 5,394
| Attribute | Value |
|---|---|
| Product Status | Active |
| Topology | Charge Pump (1), Linear (LDO) (1) |
| Number of Outputs | 2 |
| Frequency - Switching | 100kHz ~ 1MHz |
| Voltage/Current - Output 1 | Fixed, Adjustable |
| Voltage/Current - Output 2 | Fixed, Adjustable, -505mV to -16.5V, 100mA |
| Voltage/Current - Output 3 | Fixed, Adjustable |
| w/LED Driver | No |
| w/Supervisor | No |
| w/Sequencer | No |
| Voltage - Supply | 2.7V ~ 16V |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 16-WQFN Exposed Pad, CSP |
| Supplier Device Package | 16-LFCSP-WQ (4x4) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TPS65321QPWPRQ1 | Texas Instruments | IC REG DL BUCK/LINEAR 14HTSSOP | 99% | View |
| TPS65321AQPWPRQ1 | Texas Instruments | IC REG DL BUCK/LINEAR 14HTSSOP | 99% | View |
| TPS65320DQPWPRQ1 | Texas Instruments | IC REG DL BUCK/LINEAR 14HTSSOP | 96% | View |
| MCZ33730EK | Freescale Semiconductor | SW MODE P/S WITH MULT REGULATORS | 83% | View |
| MC33730EKR2 | Freescale Semiconductor | MC33730, SWITCH MODE POWER SUPP | 83% | View |
| MC33730EK | NXP USA Inc. | IC REG TRIPLE BUCK/LINEAR 32SOIC | 83% | View |
Submit your RFQ for ADP5600ACPZ-R7 and get a quote within 24 hours.
