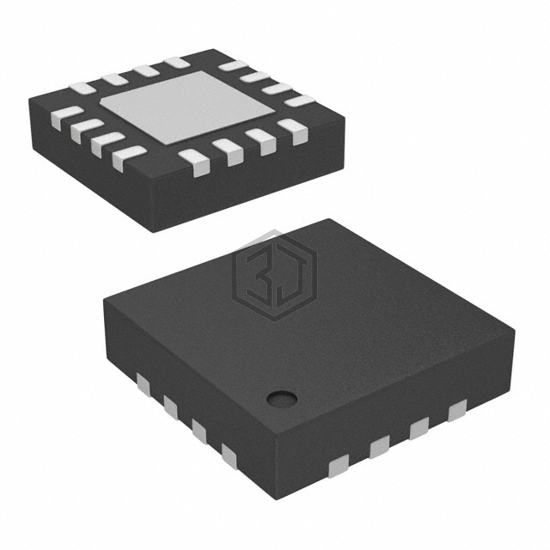

IC REG BCK BST INV 2.4A 16LFCSP
ADP5074ACPZ-R7 is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Analog Devices Inc.. IC REG BCK BST INV 2.4A 16LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 16-WFQFN Exposed Pad, CSP, current - output 2.4A.
In Stock: 5,458
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Ratiometric, Step-Up/Step-Down |
| Output Configuration | Negative |
| Topology | Buck-Boost |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.85V |
| Voltage - Input (Max) | 15V |
| Voltage - Output (Min/Fixed) | Vin-39V |
| Voltage - Output (Max) | - |
| Current - Output | 2.4A |
| Frequency - Switching | 1.2MHz, 2.4MHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 16-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 16-LFCSP (3x3) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADP5073ACPZ-R7 | Analog Devices Inc. | IC REG BCK BST INV 1.2A 16LFCSP | 89% | View |
| ADP5075ACBZ-R7 | Analog Devices Inc. | IC REG BCK BST INV 800MA 12WLCSP | 83% | View |
Submit your RFQ for ADP5074ACPZ-R7 and get a quote within 24 hours.
