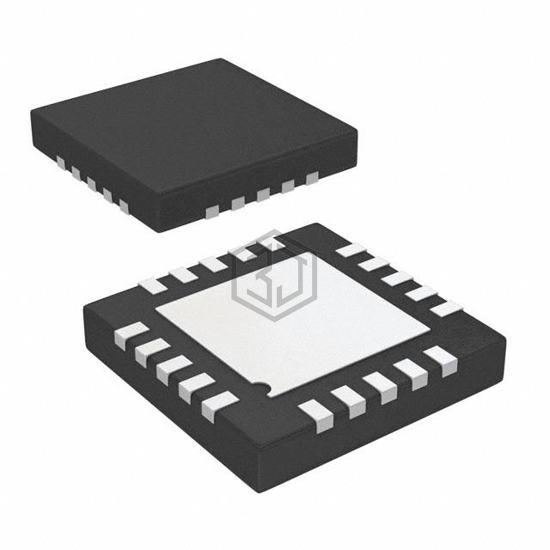

IC REG BST SEPIC ADJ DL 20LFCSP
ADP5071ACPZ is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Analog Devices Inc.. IC REG BST SEPIC ADJ DL 20LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 20-WFQFN Exposed Pad, CSP, current - output 1.2A, 2A.
In Stock: 1,095
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive and Negative (Dual Rail) |
| Topology | Boost, SEPIC |
| Output Type | Adjustable |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 2.85V |
| Voltage - Input (Max) | 15V |
| Voltage - Output (Min/Fixed) | 0.8V, 1.6V |
| Voltage - Output (Max) | ±39V |
| Current - Output | 1.2A, 2A |
| Frequency - Switching | 1.2MHz, 2.4MHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 20-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 20-LFCSP (4x4) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADP5071AREZ-R7 | Analog Devices Inc. | IC REG BST SEPIC ADJ DL 20TSSOP | 100% | View |
| ADP5071AREZ | Analog Devices Inc. | IC REG BST SEPIC ADJ DL 20TSSOP | 100% | View |
| ADP5071ACPZ-R7 | Analog Devices Inc. | IC REG BST SEPIC ADJ DL 20LFCSP | 100% | View |
| ADP5070AREZ-R7 | Analog Devices Inc. | IC REG BST SEPIC ADJ DL 20TSSOP | 91% | View |
| ADP5070AREZ | Analog Devices Inc. | IC REG BST SEPIC ADJ DL 20TSSOP | 91% | View |
| ADP5070ACPZ | Analog Devices Inc. | IC REG BST SEPIC ADJ DL 20LFCSP | 91% | View |
