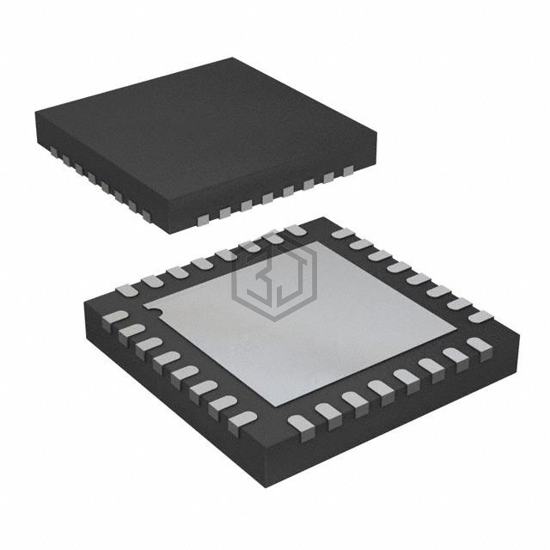

IC REG BCK ADJ/PRG SGL/DL 32CSP
ADP2114ACPZ-R2 is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Analog Devices Inc.. IC REG BCK ADJ/PRG SGL/DL 32CSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 32-WFQFN Exposed Pad, CSP, current - output 4A, 2A.
In Stock: 5,449
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable (Programmable) |
| Number of Outputs | 1 or 2 |
| Voltage - Input (Min) | 2.75V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 0.6V (0.8V, 1.2V, 1.5V, 1.8V, 2.5V, 3.3V) |
| Voltage - Output (Max) | 5.5V |
| Current - Output | 4A, 2A |
| Frequency - Switching | 300kHz, 600kHz, 1.2MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 32-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 32-LFCSP-WQ (5x5) |
ADP2114ACPZ-R2 is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADP2114ACPZ-R7 | Analog Devices Inc. | IC REG BCK ADJ/PRG SGL/DL 32CSP | 100% | View |
| ADP2116ACPZ-R7 | Analog Devices Inc. | IC REG BUCK ADJ/PROG 32LFCSP | 95% | View |
| ZL2101ALAF | Renesas Electronics America Inc | IC REG BUCK ADJ/PROG 6A 36QFN | 57% | View |
| ZL2101ALAFTK | Renesas Electronics America Inc | IC REG BUCK ADJ/PROG 6A 36QFN | 57% | View |
| ZL2101ALAFT | Renesas Electronics America Inc | IC REG BUCK ADJ/PROG 6A 36QFN | 57% | View |
Submit your RFQ for ADP2114ACPZ-R2 and get a quote within 24 hours.
