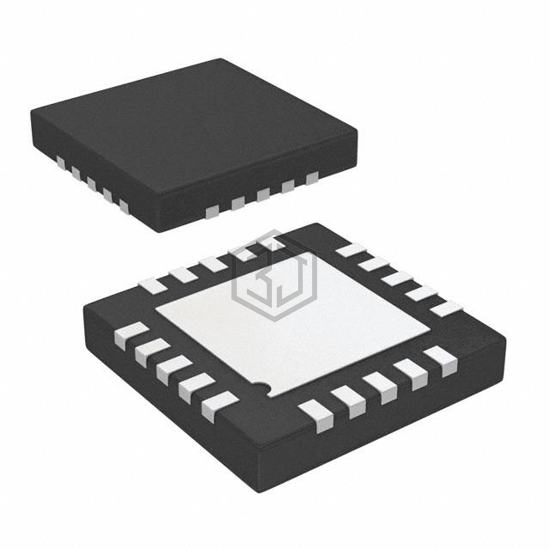

IC REG CTRLR BUCK 20LFCSP
ADP1853ACPZ-R7 is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc.. IC REG CTRLR BUCK 20LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 2.75V ~ 20V, package / case 20-WFQFN Exposed Pad, CSP.
In Stock: 687
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 2.75V ~ 20V |
| Frequency - Switching | 200kHz ~ 1.5MHz |
| Duty Cycle (Max) | 90% |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, Frequency Control, Power Good, Ramp, Soft Start, Tracking |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 20-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 20-LFCSP (4x4) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LM27402MH/NOPB | Texas Instruments | IC REG CTRLR BUCK 16TSSOP | 99% | View |
| LM27402SQX/NOPB | Texas Instruments | IC REG CTRLR BUCK 16WQFN | 99% | View |
| UCD7230ARGWT | Texas Instruments | IC REG CTRLR BUCK 20VQFN | 94% | View |
| MIC2127AYML-T5 | Microchip Technology | IC REG CTRLR BUCK 16VQFN | 94% | View |
| LM5117QPSQE/NOPB | Texas Instruments | IC REG CTRLR BUCK 24WQFN | 92% | View |
| LT3741EUF#PBF | Analog Devices Inc. | IC REG CTRLR BUCK 20QFN | 91% | View |
Submit your RFQ for ADP1853ACPZ-R7 and get a quote within 24 hours.
