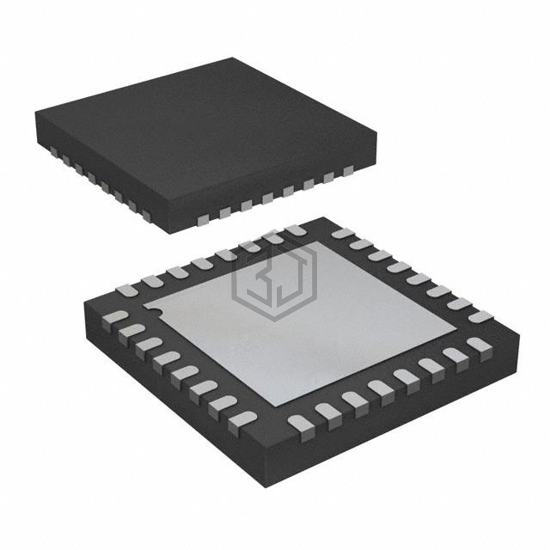

IC REG CTRLR BUCK 32LFCSP
ADP1823ACPZ-R7 is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc.. IC REG CTRLR BUCK 32LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 3.7V ~ 20V, package / case 32-WFQFN Exposed Pad, CSP.
In Stock: 285,044
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 2 |
| Output Phases | 2 |
| Voltage - Supply (Vcc/Vdd) | 3.7V ~ 20V |
| Frequency - Switching | 300kHz, 600kHz |
| Duty Cycle (Max) | 90% |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Enable, Frequency Control, Power Good, Soft Start, Tracking |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 32-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 32-LFCSP-WQ (5x5) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LTC3736EUF-2#PBF | Analog Devices Inc. | IC REG CTRLR BUCK 24QFN | 97% | View |
| LT3845MPFE#PBF | Analog Devices Inc. | IC REG CTRLR BUCK 16TSSOP | 83% | View |
| MIC2182-3.3YM | Microchip Technology | IC REG CTRLR BUCK 16SOIC | 82% | View |
| ADP1870ARMZ-0.3-R7 | Analog Devices Inc. | IC REG CTRLR BUCK 10MSOP | 82% | View |
| S-8520E50MC-BKJT2U | ABLIC Inc. | IC REG CTRLR BUCK SOT23-5 | 80% | View |
| R1224N122G-TR-FE | Nisshinbo Micro Devices Inc. | 18.5V INPUT PWM/VFM STEP-DOWN DC | 79% | View |
Submit your RFQ for ADP1823ACPZ-R7 and get a quote within 24 hours.
