IC REG LDO

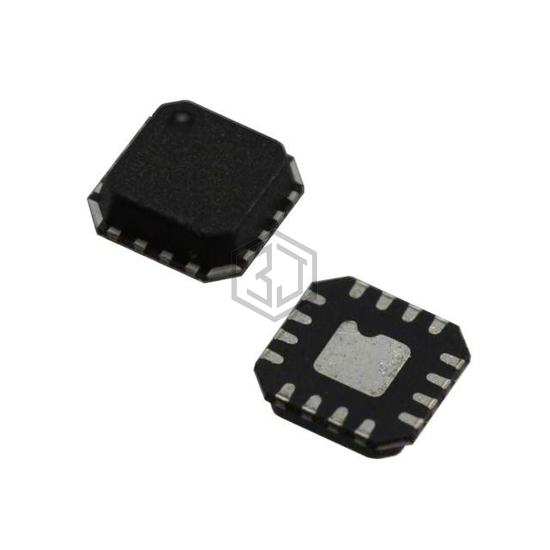

ADP1765ACPZ-1.0-R7 is a PMIC - Voltage Regulators - Linear manufactured by Analog Devices Inc.. IC REG LDO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 16-WFQFN Exposed Pad, CSP, current - supply (max) 25 mA.
In Stock: 3,839
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 1.98V |
| Voltage - Output (Min/Fixed) | 1V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | - |
| Current - Output | 5A |
| Current - Quiescent (Iq) | 17 mA |
| Current - Supply (Max) | 25 mA |
| PSRR | 61dB ~ 33dB (10kHz ~ 1MHz) |
| Control Features | Enable, Power Good, Soft Start |
| Protection Features | Current Limit, Thermal Overload |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 16-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 16-LFCSP (3x3) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADP1765ACPZ0.95-R7 | Analog Devices Inc. | IC REG LDO | 98% | View |
| ADP1765ACPZ-1.2-R7 | Analog Devices Inc. | IC REG LDO | 94% | View |
| ADP1765ACPZ1.25-R7 | Analog Devices Inc. | IC REG LINEAR 1.25V 5A 16LFCSP | 93% | View |
| ADP1764ACPZ-1.1-R7 | Analog Devices Inc. | IC REG LINEAR 1.1V 4A 16LFCSP | 92% | View |
| ADP1764ACPZ0.85-R7 | Analog Devices Inc. | IC REG LINEAR 0.85V 4A 16LFCSP | 90% | View |
| ADP1764ACPZ-1.3-R7 | Analog Devices Inc. | IC REG LINEAR 1.3V 4A 16LFCSP | 87% | View |
Submit your RFQ for ADP1765ACPZ-1.0-R7 and get a quote within 24 hours.
