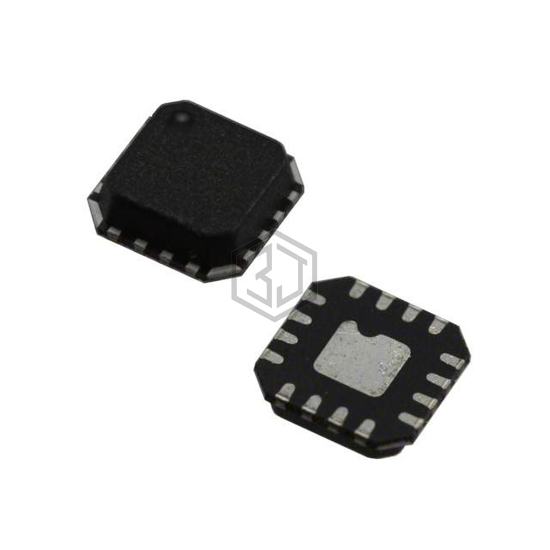

IC REG LINEAR 1.2V 4A 16LFCSP
ADP1764ACPZ-1.2-R7 is a PMIC - Voltage Regulators - Linear manufactured by Analog Devices Inc.. IC REG LINEAR 1.2V 4A 16LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 16-WFQFN Exposed Pad, CSP, current - supply (max) 23 mA.
In Stock: 9,080
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 1.98V |
| Voltage - Output (Min/Fixed) | 1.2V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.075V @ 4A |
| Current - Output | 4A |
| Current - Quiescent (Iq) | 17 mA |
| Current - Supply (Max) | 23 mA |
| PSRR | 69dB ~ 35dB (10kHz ~ 1MHz) |
| Control Features | Enable, Power Good, Soft Start |
| Protection Features | Current Limit, Thermal Overload |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 16-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 16-LFCSP (3x3) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADP1764ACPZ1.25-R7 | Analog Devices Inc. | IC REG LINEAR 1.25V 4A 16LFCSP | 99% | View |
| ADP1764ACPZ-1.3-R7 | Analog Devices Inc. | IC REG LINEAR 1.3V 4A 16LFCSP | 98% | View |
| ADP1764ACPZ-1.1-R7 | Analog Devices Inc. | IC REG LINEAR 1.1V 4A 16LFCSP | 97% | View |
| ADP1764ACPZ-1.0-R7 | Analog Devices Inc. | IC REG LINEAR 1V 4A 16LFCSP | 95% | View |
| ADP1764ACPZ-1.5-R7 | Analog Devices Inc. | IC REG LINEAR 1.5V 4A 16LFCSP | 94% | View |
| ADP1764ACPZ0.95-R7 | Analog Devices Inc. | IC REG LINEAR 0.95V 4A 16LFCSP | 93% | View |
Submit your RFQ for ADP1764ACPZ-1.2-R7 and get a quote within 24 hours.
