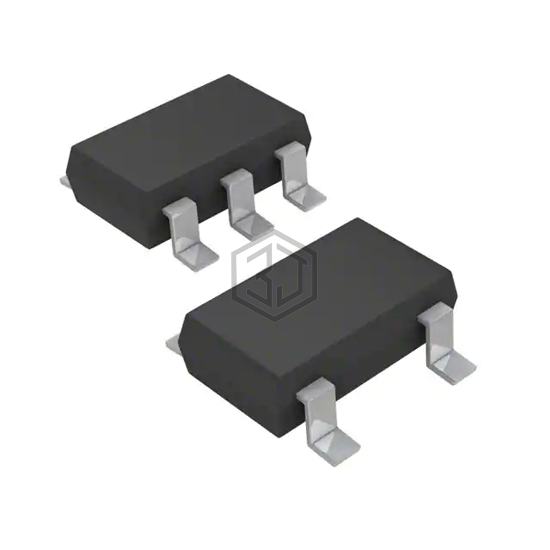

IC REG LDO 1.15V 0.3A TSOT23-5
ADP1714AUJZ-1.15R7 is a PMIC - Voltage Regulators - Linear manufactured by Analog Devices Inc.. IC REG LDO 1.15V 0.3A TSOT23-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case SOT-23-5 Thin, TSOT-23-5, current - supply (max) 420 µA.
In Stock: 24,944
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.15V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.23V @ 300mA |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 70 µA |
| Current - Supply (Max) | 420 µA |
| PSRR | 65dB (1kHz) |
| Control Features | Enable, Tracking |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | TSOT-23-5 |
ADP1714AUJZ-1.15R7 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADP1714AUJZ-1.1-R7 | Analog Devices Inc. | IC REG LINEAR 1.1V 300MA TSOT5 | 99% | View |
| ADP1713AUJZ-1.3-R7 | Analog Devices Inc. | IC REG LDO 1.3V 0.3A TSOT23-5 | 96% | View |
| ADP1714AUJZ-1.0-R7 | Analog Devices Inc. | IC REG LINEAR 1V 300MA TSOT5 | 96% | View |
| ADP1713AUJZ-1.0-R7 | Analog Devices Inc. | IC REG LINEAR 1V 300MA TSOT5 | 96% | View |
| ADP1713AUJZ-3.0-R7 | Analog Devices Inc. | IC REG LINEAR 3V 300MA TSOT5 | 79% | View |
| ADP1712AUJZ-3.0-R7 | Analog Devices Inc. | IC REG LINEAR 3V 300MA TSOT5 | 79% | View |
Submit your RFQ for ADP1714AUJZ-1.15R7 and get a quote within 24 hours.
