QUAD 2.5GBPS 4+0 LVDS ISOLATOR

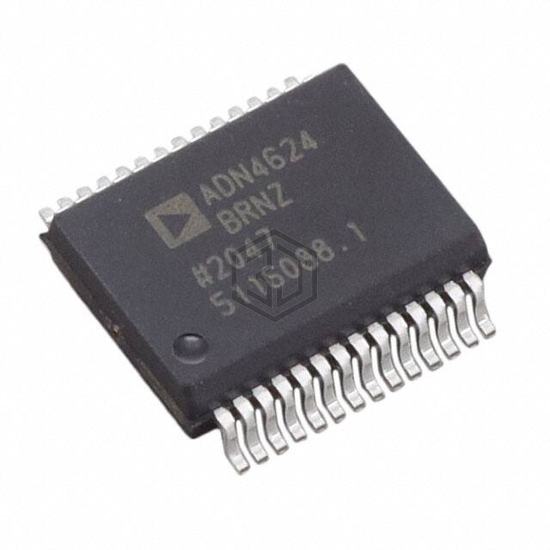

ADN4624BRNZ is a Digital Isolators manufactured by Analog Devices Inc.. QUAD 2.5GBPS 4+0 LVDS ISOLATOR. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 1.7V ~ 1.9V, package / case 28-BSSOP (0.295", 7.50mm Width).
In Stock: 8,535
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic Coupling |
| Type | LVDS |
| Isolated Power | No |
| Number of Channels | 4 |
| Inputs - Side 1/Side 2 | 4/0 |
| Channel Type | Unidirectional |
| Voltage - Isolation | 5700Vrms |
| Common Mode Transient Immunity (Min) | 40kV/µs |
| Data Rate | 2.5Gbps |
| Propagation Delay tpLH / tpHL (Max) | 2.8ns, 2.8ns |
| Pulse Width Distortion (Max) | - |
| Rise / Fall Time (Typ) | 180ns, 180ns (Max) |
| Voltage - Supply | 1.7V ~ 1.9V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 28-BSSOP (0.295", 7.50mm Width) |
| Supplier Device Package | 28-SOIC-W-FP |
Submit your RFQ for ADN4624BRNZ and get a quote within 24 hours.
