800MA ULN 1.5TO4VO ADJ LDO

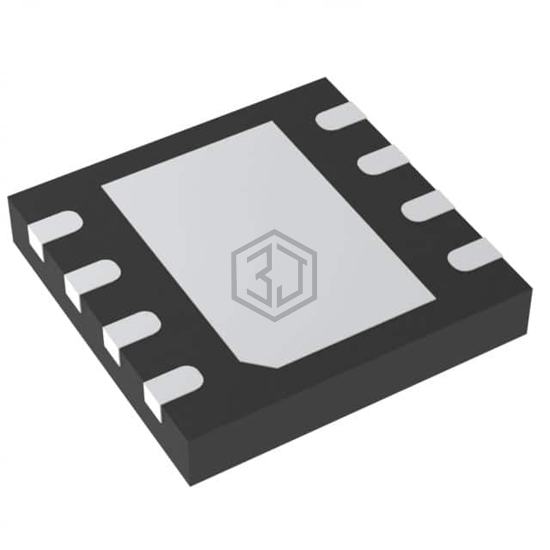

ADM7151ACPZ-02-R2 is a PMIC - Voltage Regulators - Linear manufactured by Analog Devices Inc.. 800MA ULN 1.5TO4VO ADJ LDO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 8-WFDFN Exposed Pad, CSP, current - supply (max) 12 mA.
In Stock: 5,841
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 16V |
| Voltage - Output (Min/Fixed) | 1.5V |
| Voltage - Output (Max) | 4V |
| Voltage Dropout (Max) | 1.2V @ 800mA |
| Current - Output | 800mA |
| Current - Quiescent (Iq) | 7 mA |
| Current - Supply (Max) | 12 mA |
| PSRR | 94dB ~ 50dB (1kHz ~ 1MHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-WFDFN Exposed Pad, CSP |
| Supplier Device Package | 8-LFCSP-WD (3x3) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADM7151ARDZ-04 | Analog Devices Inc. | IC REG LIN POS ADJ 800MA 8SOIC | 100% | View |
| ADM7151ARDZ-02-R7 | Analog Devices Inc. | IC REG LIN POS ADJ 800MA 8SOIC | 100% | View |
| ADM7151ACPZ-02-R7 | Analog Devices Inc. | IC REG LIN POS ADJ 800MA 8LFCSP | 100% | View |
| TLS203B0EJVXUMA1 | Infineon Technologies | IC REG LIN POS ADJ 300MA 8DSO | 60% | View |
| ADP7157ACPZ-02-R7 | Analog Devices Inc. | IC REG LIN POS ADJ 1.2A 10LFCSP | 57% | View |
| ADP7157ACPZ-01-R7 | Analog Devices Inc. | IC REG LIN POS ADJ 1.2A 10LFCSP | 57% | View |
Submit your RFQ for ADM7151ACPZ-02-R2 and get a quote within 24 hours.
