3.75KV ISOLATED RS485 25MBPS FD

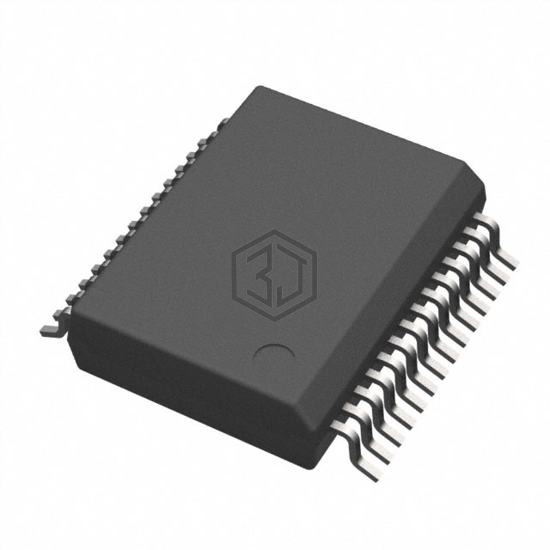

ADM2567EBRNZ-RL7 is a Digital Isolators manufactured by Analog Devices Inc.. 3.75KV ISOLATED RS485 25MBPS FD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - supply 3V ~ 5.5V, package / case 28-BSSOP (0.295", 7.50mm Width).
In Stock: 7,707
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic Coupling |
| Type | RS422, RS485 |
| Isolated Power | Yes |
| Number of Channels | 4 |
| Inputs - Side 1/Side 2 | 1/3 |
| Channel Type | Unidirectional |
| Voltage - Isolation | 3000Vrms |
| Common Mode Transient Immunity (Min) | 250kV/µs |
| Data Rate | 25Mbps |
| Propagation Delay tpLH / tpHL (Max) | 25ns, 25ns |
| Pulse Width Distortion (Max) | - |
| Rise / Fall Time (Typ) | 4.5ns, 4.5ns |
| Voltage - Supply | 3V ~ 5.5V |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Package / Case | 28-BSSOP (0.295", 7.50mm Width) |
| Supplier Device Package | 28-SOIC-W-FP |
Submit your RFQ for ADM2567EBRNZ-RL7 and get a quote within 24 hours.
